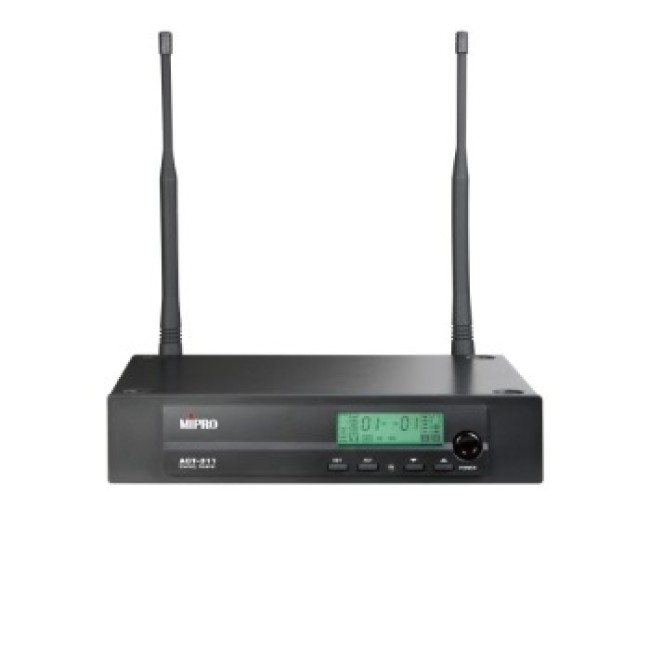

• EIA standard 1/2U metal receiver.
• Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
• Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
• A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
• Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
• High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
• World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
• Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
• Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
• Industry’s only RF interference warning indicator for ideal SQ level adjustment.
• DC input socket accepts 12~15V power supply.
• Matching ACT-32H handheld and ACT-32T bodypack transmitters.
| Datasheet | ACT-311 Datasheet [PDF] |
|---|---|
| Channel | Single |
| Chassis | EIA Standard 19 " 1/2U metal chassis |
| Receiving Mode | CPU-controlled diversity receiving |
| Frequency Range | UHF 480~934MHz |
| Bandwidth | 24MHz |
| Preset Frequencies | 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11. |
| Antenna | Rear Panel. Detachable. |
| Oscillation Mode | PLL synthesized |
| Stability | ±0.005% (-10~+60ºC) |
| Sensitivity | 10dBµV, at S/N>80dB |
| S/N Ratio | >106dB(A) |
| T.H.D. | <0.5% @ 1kHz |
| Frequency Response | 50Hz~18kHz, with high-pass filter |
| Squelch | "PiloTone & NoiseLock" dual-squelch circuit |
| Audio Output Adjustment | Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. |
| Maximum Output Level | 2-level Switch: Line & Mic |
| Power Supply | External AC Adapter, 12~15V DC, 1A |
| Dimensions | 210(W)×44(H)×180(D)mm / 8.3 (W)x1.7(H)x7.1(D)" |
| Weight | Approx. 0.8kg / 1.8lbs |
| Note | Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
