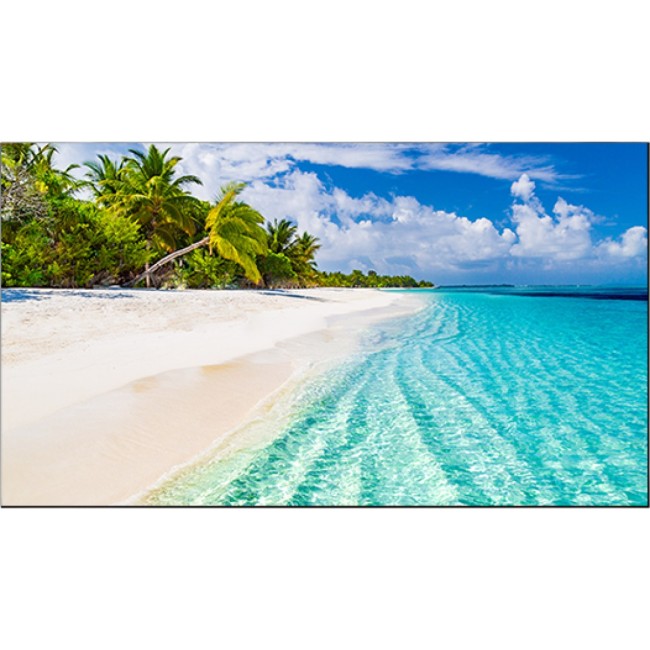

Vestel WY55B-2H 55" 0.9mm FHD 500nit VideoWall

  • 55" 0.9mm FHD 500nit VideoWall.
  • Brand:
  • Product Code:WY55B2H
Contact for Price
FEATURES

Remote Control

Any number of Vestel VWs can be remotely controlled over RS232 Loop configuration. This eases the installation process of the VW displays, by controlling and configuring all the units via PC at the same time.

Video Wall Controller Tool

This new software puts ease of use for Video walls by reaching Auto/Manual parameter setup on each/multi/all selected display, Remote control by IR Simulation or LAN/RS232 Control and Video and Picture rotation for Informal Layouts on one software.

Wall Mount Option

Vestel presents the Wall Mount option for landscape usage. Vestel Wall mounts are able to move in all possible directions making it easy to place and align the bezels perfectly.

Eco Design

Vestel VWs are made to operate at lower energy usage while performing at high levels. Also, Vestel follows the worldwide standards for limiting harmful substances and eliminating waste products.

Longer Stability

Vestel VWs are able to tolerate longer hours of operation, equipped with pixel-shifting feature to prevent a fixed image from sticking on the screen.

Higher Visibility

Vestel panels come with anti-reflective treatment to decrease glare under strong light exposure. Aside from glare protection, 700 Nits VWs ensure high visibility even under high levels of ambient light.

White color Calibration

For managing color uniformity with highest performance, color calibration has been made available for on-site maintenance. This results in a more uniform colour distribution and minimised colour distortion.

IPS Reliability

Vestel IPS displays present the most clear image in both landscape and portrait orientation without any image distortion. IPS also provides 178o ultra-wide viewing angle, displaying the most accurate image quality.

Daisy Chain with Display Port or HDMI Option

Reduce cost and maximize video quality with Vestel’s Video Wall displays, using Display Port 1.2a-enabled or HDMI 2.0 screens, Vestel offers a daisy chain solution that cuts the cost of installation, cabling and maintenance.

OPS Compatibility

65” Videowall is the only Vestel Videowall with the OPS slot which can be connected in a daisy chain format without needing any external media players.

Ultra / Extra / Razor Narrow Bezel

Reducing the gap between each display area. Vestel’s designs help create an almost seamless overall on screen image with 3.5 mm, 1.8 mm and less than 1 mm combined bezels.

Landscape and Portrait Mode

Our Video Walls can be displayed in either landscape or portrait mode. Vestel’s 24/7 professional displays not only allow for installation in portrait mode, but also for additional display protection. The displays’ Pixel Shifting feature reduces the risk of any on-screen imagery sticking.

Great Picture with Different Brightness Option

Create a seamless and striking visual experience with our Video Wall displays. Offering 500-700 Nit options, our monitors can display your content in picture perfect resolution, whatever the lighting conditions.

Real Ultra HD Resolution

With our videowall you can deliver real UHD resolution in a 2 x 2 arrangement. The videowalls are capable of combining 4 x FHD displays to create a single Real UHD image without the need of external processing or scaling devices.

Specification Table
Category Specification
Panel
Screen Size55"
Panel TechnologyIPS
Backlight TypeDLED
Brightness (typical)500 cd/m2
Native Resolution1920x1080
Contrast Ratio (typical)1100 : 1
Dynamic Contrast Ratio500000 : 1
Life Time (typical)60000hrs
Response Time (typical)8 ms
Active Area (H x V)1209.63(H) x 680.34(V)
Viewing Angle178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value1.07 B (10-bit)
Screen Treatment2H
Haze Level28%
Refresh Rate60 Hz
Front TypeRazor Narrow Bezel
OrientationHorizontal / Vertical
Operation Hours24/7 Panel
Area of UsageIndoor
Built-in System
Mainboard Model17MB135VS
Monitor Connectivity
RGB InputVGA(DE-15F)
RGB OutputN/A
Video Input2xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video OutputHDMI2.0
Audio InputLine In L/R
Audio OutputHeadphone, Optic SPDIF
External ControlRS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External SensorRJ12
Environmental Conditions
Operating Temperature+50°C / 0°C
Operating Humidity%90
Power
Power Supply110 VAC - 240 VAC
Power Consumption
Typical138 W
Maximum260 W
Deep Standby0.5W<
Mechanical Features
Size1210.5 (L) x 90.6 (D) x 681.2 (H) mm
Shipping Size1366 (L) x 277 (D) x 836 (H) mm
Weight (kg)27
Shipping Weight37
Vesa Mounting Size400 x 600
Bezel Width0.88 mm (BezeltoBezel)
Features
Main FeaturesVideowall setup with Daisy-Chain, Open Content Management Support, Manual Fine Color Calibration, Videowall Scheduler, Auto-Launch, Auto-switch on Failover, Panel Lock
Mechanical FeaturesON/OFF Button, IR Extender, Carrying Handles
SpeakerN/A
Accessory
StandardQSG, IB, Power Cord, Remote Control, RC Battery, Display Port Cable, USB to Rs232 Converter
Mounting KitStandard
Certification
SafetyYes
EMCYes
CEYes
* Specifications are subject to change without prior notice.
