Product Code:MUX22IVTIC422

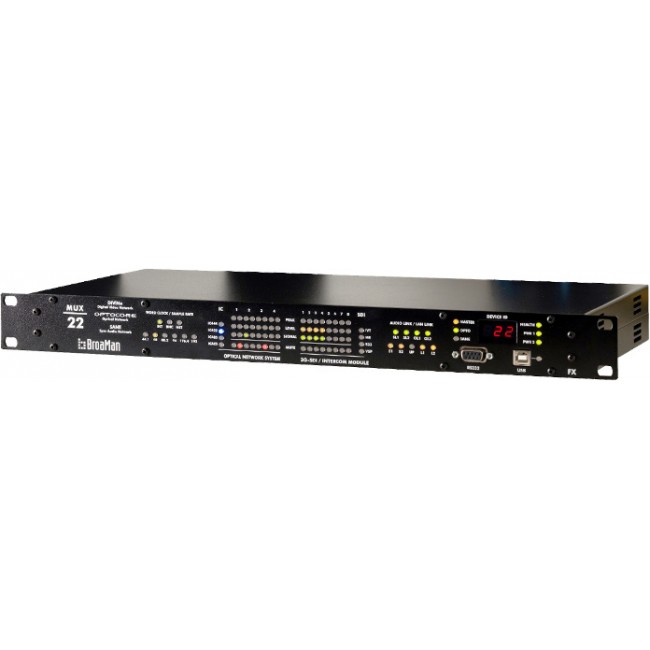

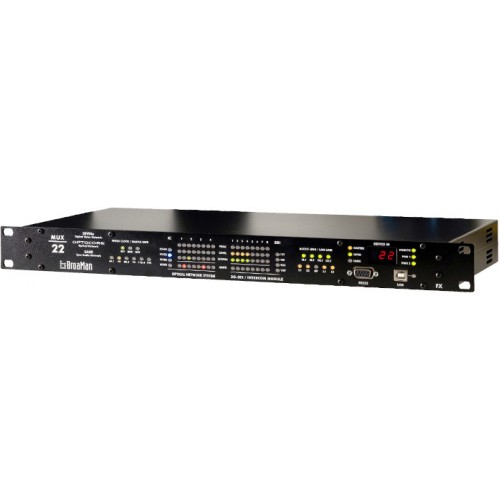

BroaMan Mux22-IVT/IC422 Multiplexing Routing Media Conversion
- 8 x 3G-SDI video, 4 x 4-wire INTERCOM for Clear-Com, 2 x Optocore fiber links, 2 x SANE/LAN, 2 x LAN, 4 x RS485/422 or 4 x GPIO (to be specified while ordering), V-Sync I/O, 1310nm auxiliary tunnel,
- Brand:
*Out of Stock
-
AED 24,795.75
- -
- +
*Rate inclusive of VAT. Delivery time: 2 - 4 days
Mux22-IVT/IC422 is a device, which combines different formats of video, intercom and data in a single duplex fiber cable. The number of video inputs and outputs can be specified when ordering, by selecting dual input or dual output modules. Every single channel and transceiver in the device can be controlled and monitored in real time remotely using Optocore Control application.
Mux22-IVT/IC422 was created in cooperation with Clear-Com. It integrates matrix-panel intercom connections including audio and control data transport.
The device is fully compatible with all Optocore products, which makes it very flexible. It is very easy to add analog or digital audio to the Mux22 by extending it with the Optocore devices. Still everything is transported via the same single duplex fiber cable.
Mux22 can be used as a point-to-point pair to transport multiple signals between two locations. Furthermore it can be used as a stagebox to Route66 Video Router – in that case it becomes a remote I/O device for the star-based larger system.
MUX22 IVT/IC422 can be upgraded with optional 4K/UHD native video ports (12G option) or with main fiber connection redundancy (Redundancy option).
| Video ports | |||
|---|---|---|---|
| Standards | SD, ED, HD, Dual Link, 3G, ASI, MADI | ||
| Complies with SMPTE | 259M, 292M, 344M, 372M, 424M | ||
| Interface | SDI – Serial Digital Interface | ||
| INTERCOM ports | 4-wire Clear-Com intercom standard | ||
| Connection | RJ45 | ||
| 4 x line input, 4 x line output, 4 x RS422 | |||
| Optical Connection | Complies with 21 CFR 1040.10 and 1040.11 | ||
| Connection | LC | ||
| Data rate | Dependent on the Video data rate – no bandwidth restriction | ||
| Fiber cable lengths | Standard singlemode transceiver | ≤ 10 km | |
| Special singlemode transceiver | ≤ 80 km (on request) | ||
| SANE, LAN ports | Convention | ||
| Audio | TIA – 568A/B, Optocore | 200 Mbit/s | |
| LAN | TIA – 568A/B, IEEE – 802.3 | 10/100 Mbit/s | |
| Serial Data Port | Convention EIA / TIA-485 | ||
| Data channels | Digital control data | 4 | |
| Data rate | Up to 10 Mbps | ||
| Impedance | Termination | 330 Ω | |
| Source | ≤ 10 Ω | ||
| Auxiliary Fiber Port | 1310nm fiber tunnel | ||
| Connection | Duplex LC | ||
| Data rate | Dependent on the distance between locations – no bandwidth restriction | ||
| Sync | Hardware standard BNC – 75 Ω | ||
| Input Standards | Word Clock, Black Burst (bi-level), Tri-Level | ||
| PAL/SECAM, NTSC, 720p59.94, 720p50, 1080i29.97, 1080i25 | |||
| Output Standards | Word Clock, Black Burst (bi-level), Tri-Level | ||
| BNC 1Vpp, BNC 3Vpp, PAL/SECAM, NTSC, 720p59.94, 720p50, 1080i29.97, 1080i25 | |||
| Output Phase Shift | Line, Frame, Pixel, Percent, Degree | ||
| Remote Control | |||
| RS232 | EIA / TIA – 232 | 57 600 Baud | |
| USB | USB 2.0 – Device | 12 Mbit/s | |
| LAN | IEEE – 802.3 | 10/100 Mbit/s | |
| Power Supply | |||
| Type | Switch-mode, universal input | ||
| Mains voltage | 100… 240 V | 50 60 Hz | |
| Frequency | 50 60 Hz | ||
| Cooling | Passive, via surface and ventilation openings on both sides of the device | ||
| Dimensions | 1 RU / 19” | ||
| W x H x D | 19.0 x 1.73 x 7.87 inch | ||
| Weight | Dependent on configuration | ||
- 8 x 3G-SDI reclocked video channels
- Video available in different I/O combinations
- Integration with Clear-Com 4-wire intercom
- 2 x fiber SFP ports for redundant Optocore ring 2 x SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
- 4 x RS485/422 or 4 x GPIO
- 2 x LAN
- V-Sync I/O – software selectable Tri-Level, Black Burst or WordClock sync
- Auxiliary 1310nm tunnel for any-bandwidth 3rd party fiber protocol, i.e. MADI, 1G Ethernet, 10G Ethernet, SMPTE 311m
- Dual redundant PSU
- No fan
- 1RU chassis
