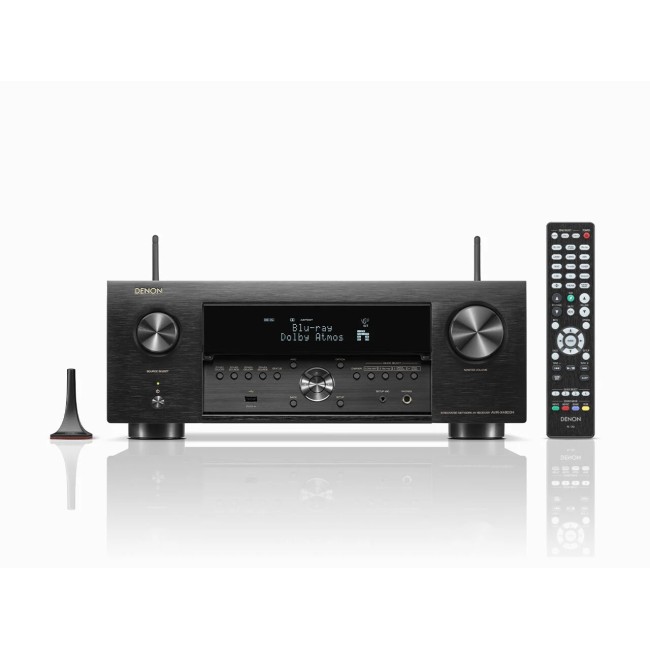

Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.
FEATURES
- 9.4 channels
- 125 watts per channel
- 8K Ultra HD
- 3D Audio
- HEOS Built-in
- Dirac Live Ready
Enveloping 3D audio
Feel like you're in the center of the action with enveloping 3D sound.
Expert ready
Take advantage of the wide variety of configuration options to best fit your space.
Denon craftsmanship
Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.
Powerful nine channel amplifier
Discrete high-current amplifiers deliver up to 125W per channel (at 8 ohms, 20- 20kHz, THD 0.05%) for more refined sound in large spaces.
3D audio experience
Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced, and Auro 3D, along with Dolby Surround, DTS Neural:X, and Auro-Matic upmixer to optimize legacy content.
Configuration flexibility
AVR-X4800H offers many setup options and the flexibility to adjust your home theater to meet your needs. Supports 11.4 channel processing capability, Pre- Amplifier mode, and optional Dirac Live upgradability (with fee).
Optimize for your room
Enhance performance with room correction options from Audyssey (installed) or Dirac Live® Room Correction and Dirac Live® Bass Control (optional).
Advanced 8K home theatre
8K video is supported on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10+ and Dynamic HDR pass-through, there’s no need to worry about video compatibility or picture quality.
| Feature | Details |
|---|---|
| Number of Power Amps | 9 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 125W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235W |
| Metal Front Panel | Yes |
| System Remote Control | RC-1252 |
| Pre-Programmed, Learnable, LCD Display | Yes, No, No |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W/110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions | Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches 17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) 【 17.1 x 14.9 x 6.6 】 |
| Weight in LBS | 29.1 |
| Weight in LBS (Packaging) | 34.9 |
