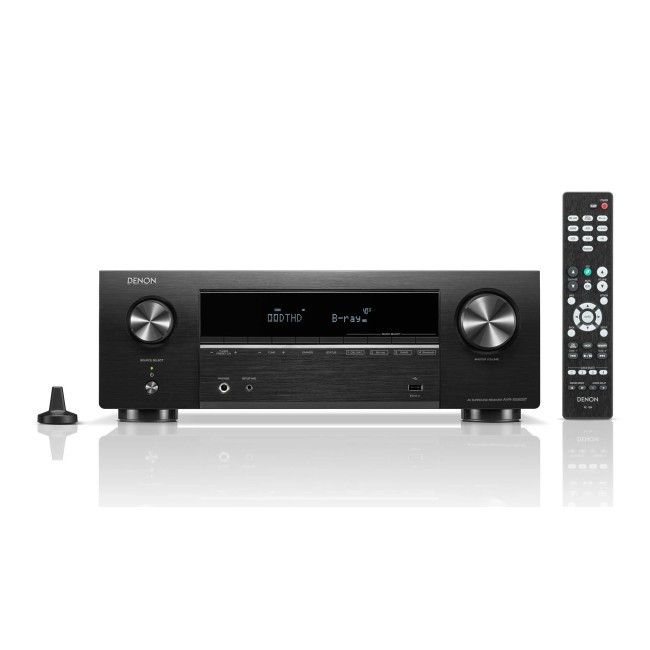

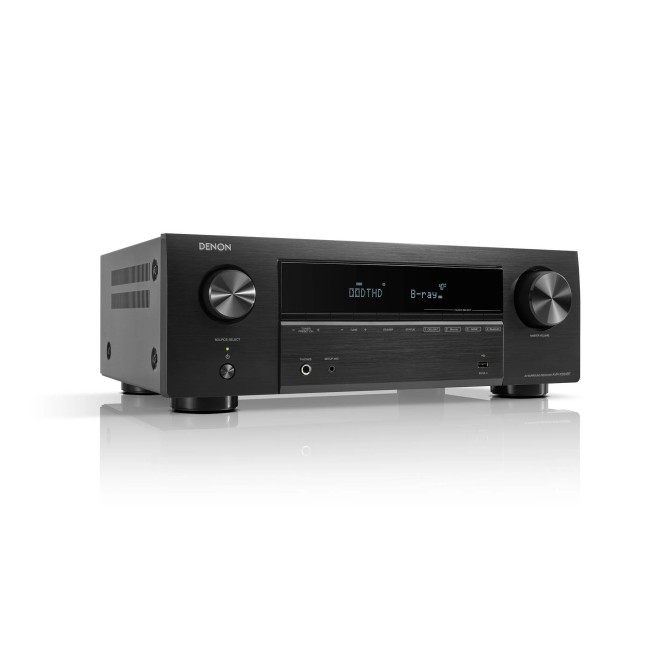

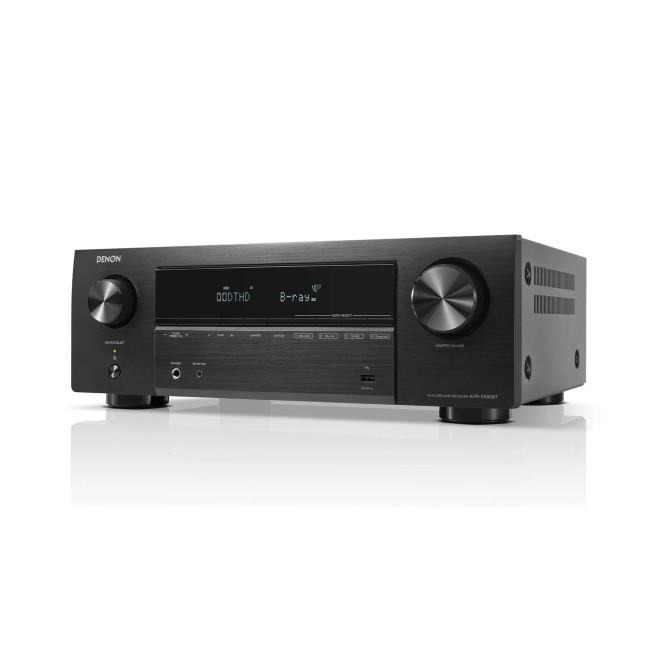

Bring movies to life in smaller spaces with amazing 8K picture quality and true surrount sound. Enjoy all your favourite entertainment with 5.2 channel surround sound and wireless music streaming via Bluetooth.
FEATURES
- True surround sound experience.: Supports Dolby TrueHD and DTS-HD for high-fidelity, loseless surround sound playback as well as Dolby and DTS umixers upt to 5.1 channels.
- Affordable 8K: Supports the latest 8K HDMI technology so you can enjoy amazing picture quality.
- Easy music streaming: Stream audio from your favourite music service via Bluetooth from any smart device.
- Lag-free gaming: Brings together the latest technologies to ensure a smooth, lag-free gaming expericence.
Powerful, discreet 5-channel amplifier
With up to 130W per channel (at 6 ohms, 1kHz, THD 1%), there is enough power to drive high-quality sound from any speaker.
Dolby TrueHD
High-fidelity lossless DolbyTrueHD and Dolby Digital, DolbyDigital Plus signal decoder, andDolby Pro Logic II upmixer for 2-channel audio signals to createa full 5.1 surround soundexperience.
DTS Surround Technology
High-fidelity lossless DTS-HD and DTS Surround, DTS 96/24signal decoding, along with DTSNeo 6 upmixer for 2-channelaudio signals to create a full 5.1surround sound experience.
HDMI Connectivity with ARC/eARC
Supports the latest technology on all HDMI inputs and the output. ARC (Audio Return Channel) or eARC (Enhanced Audio Return Channel) makes playing TV audio through your AV receiver simple with just a single HDMI connection. eARC provides HD and 3D audiotransmission such as Dolby TrueHD, DTS HD Master Audio, and Dolby Atmos while ARC is limited to conventional 5.1ch audio formats or PCM.
8K / HDCP 2.3
Enjoy pristine picture quality onyour 8K TV or projector.8K/60Hz pass-through and 8Kupscaling on 1080p or 4Kcontent is supported on all fourHDMI inputs and one output.Supports HDCP 2.3, the latestcopy protection standard, forpeace of mind when streamingcopy protected content.
Brilliant color from HDR 10+
Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through. HLG offers HDR technology overbroadcast content. Both Dynamic HDR and HDR10+ use dynamic metadata to optimize shadows and highlights as screens change.
Dolby Vision
Dolby Vision is a stunning HDR imaging technology that brings extraordinary color, contrast, and brightness to the screen. Compatible with Dolby Vision so you can enjoy Dolby Vision content from a compatible source device and TV.
Wireless music streaming via Bluetooth
Enjoy listening to your favoriteaudio content wirelessly fromyour smart devices.
High-resolution audio via USB input
Discover the incredible fidelity of high-resolution audio tracks and enjoy music as the artist intended. A front USB port supports up to 24bit/192kHz hires audio playback from a USB drive. Supported audio formats are MP3, WMA, WAV, MPEG-4/AAC, FLAC, and ALAC.
Quick Select
Press one of the four QuickSelect buttons on the frontpanel to easily store andretrieve your favorite audiosettings, such as an inputsource, volume level, or soundmode. You can also accessQuick Select buttons on theDenon 500 series remote appdownloaded on your phone.
Denon 500 Series Remote App
This iOS or Android control appallows you to turn the receiver on and off, select an inputsource, adjust volume level, andbrowse music from your phoneor in a USB drive whenconnected to the receiver.
| Feature | Details |
|---|---|
| Number of Poweramps | 5 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 70W |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | - |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 90W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 140W |
| Metal Front Panel | - |
| System Remote Control | RC-1254 |
| Pre-programmed / Learnable / LCD Display | -, -, - |
| Power Consumption in W | 310 |
| Power Consumption No-Sound (ECO On / Off) in W | 26W/35W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | - |
| Maximum Dimensions | Antenna:Horizontal: (W x D x H) in inches Antenna:Vertical: (W x D x H) in inches 【w/o Antenna: (W x D x H) in inches】 17.1 × 13 × 6 |
| Weight in LBS | 16.8 |

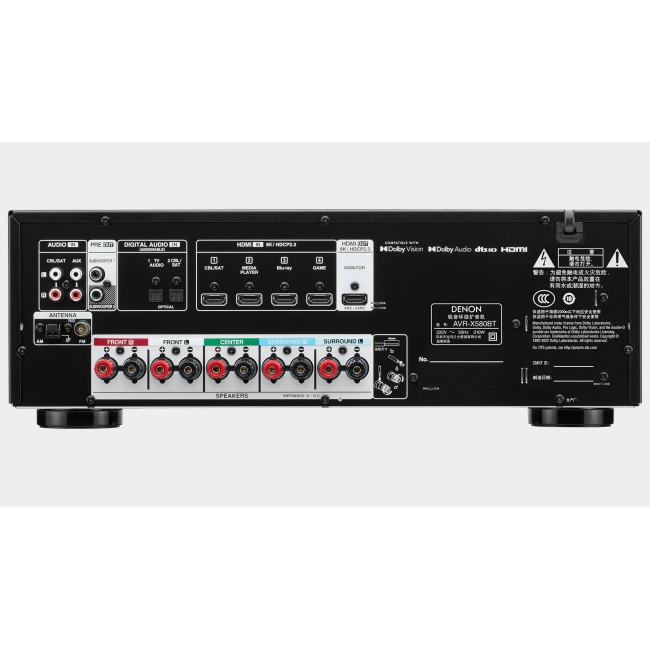

| HDMI In / Out | 4, 1 |
| Multi-room Video Out: Video / HDMI | -, - |
| Analog In, Out | 2, - |
| Phono (MM) In | - |
| Digital In: Optical / Coaxial | 2, 1 |
| Multi-room Out: Analog / Digital | -, - |
| Multichannel Preout | o (0.2) |
| Subwoofer Out | 2 |
| Speaker Terminal: Gold Plated Screw / Regular Screw | -, - |
| Number of Speaker Terminals | 5 |
| Speaker A / B | - |
| Bi-amp Drive | - |
| Multi-Room Speaker Terminal | - |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | -, -, -, -, o |
| USB Audio / Made for iPod / Made for iPhone | o, -, - |
| AM/FM Tuner | o |
