Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.
FEATURES
- 11.4 channels
- 140W per channel
- 8K Ultra HD
- 3D Audio
- HEOS® Built-in
- Seven HDMI Inputs
Enveloping 3D audio
Feel like you're in the center of the action with enveloping 3D sound.
Expert ready
Take advantage of the wide variety of configuration options to best fit your space.
Denon craftsmanship
Designed and manufactured at Denon facilities in Japan to meet our highest standards.
Powerfull 11 channel amplifier
Featuring a sophisticated power amplifier design, the AVR-X6800H delivers high-power performance at 140 watts per channel (8 Ohms, 20 Hz–20 kHz, THD: 0.05%, 2 ch. driven) to ensure a dynamic and precise entertainment experience.
3D audio experience
Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X, and Auro-Matic upmixer to optimize legacy content.
Configuration flexibility

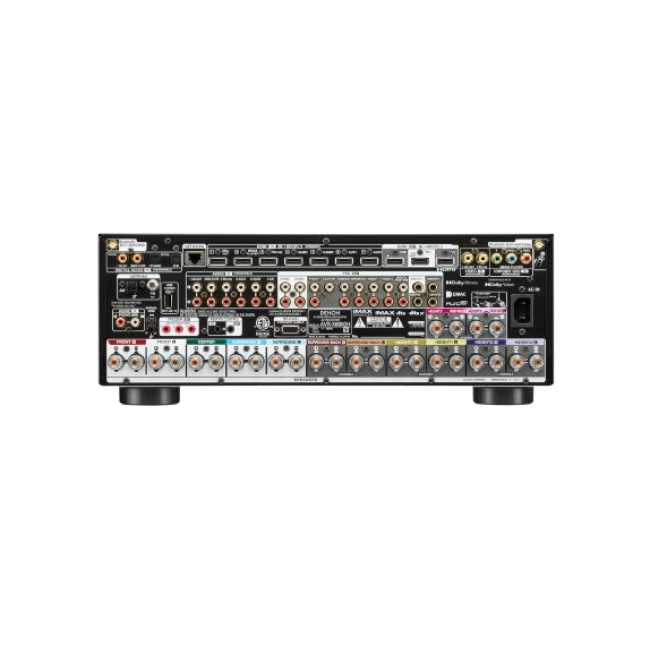

AVR-X6800H offers many setup options and flexibility to adjust your home theater to meet your needs. Supports 13.4 channel processing capability, [Pre-Elevated shot of the back] Amplifier mode, and optional Dirac Live upgradability (with fee).
Advanced 8K home theatre
8K video is supported on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR pass-through, there's no need to worry about video compatibility or picture quality.
HEOS Built-in technology
Stream music wirelessly from a variety of free and premium streaming services. Share content to HEOS devices, like Denon Home speakers, in other rooms.
| Feature | Details |
|---|---|
| Number of Power Amps | 11 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250 W |
| Metal Front Panel | Yes |
| System Remote Control | RC-1256 |
| Pre-programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 750 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W / 110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions | Antenna:Horizontal:(W x D x H) in mm ( Antenna:Vertical :(W x D x H) in mm) 【 w/o Antenna :(W x D x H) in mm】 17.1× 15.3 × 6.6 ( 17.1 x 15.3 x 9.3) ( 17.1 x 14.9 x 6.6) |
| Carton Dimensions (Packaging) (W x D x H) in Inches) | 20.9 x 18.3 x 11.9 (in) |
| Weight in LBS | 34.4 |
| Weight in LBS (Packaging) | 40.1 |
| Power Supply | AC 120 V, 60 Hz |
| Speaker Impedance | 4–16Ω/ohms |
| Pre-Amplifier Section | Input Sensitivity: 200 mV Frequency Response: 10 Hz–100 kHz — +1, –3dB (Direct mode) S/N Ratio: 102dB (IHF-A weighted, Direct mode) |
| FM section | Tuning Frequency Range: 87.5–107.9 MHz |
| AM section | Tuning Frequency Range: 520 kHz–1710 kHz |
| What's in the Box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
| UPC Code | 747192140359 |
