Product Code:50WFS010

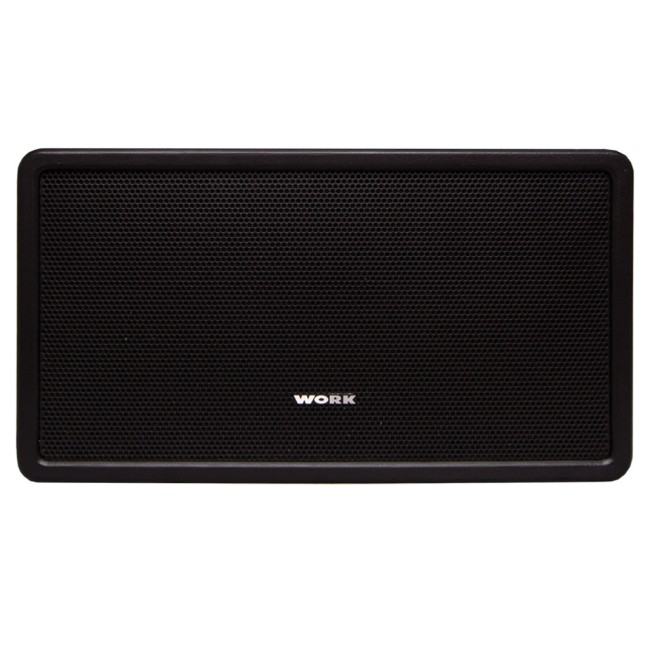

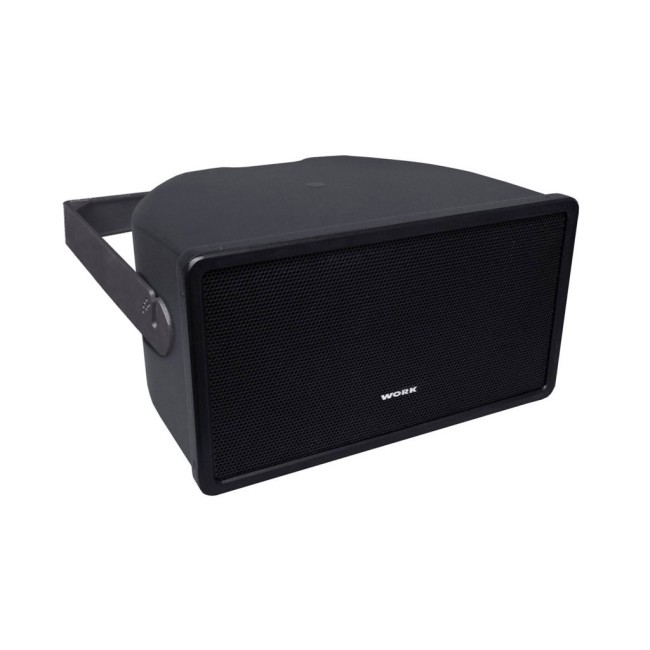

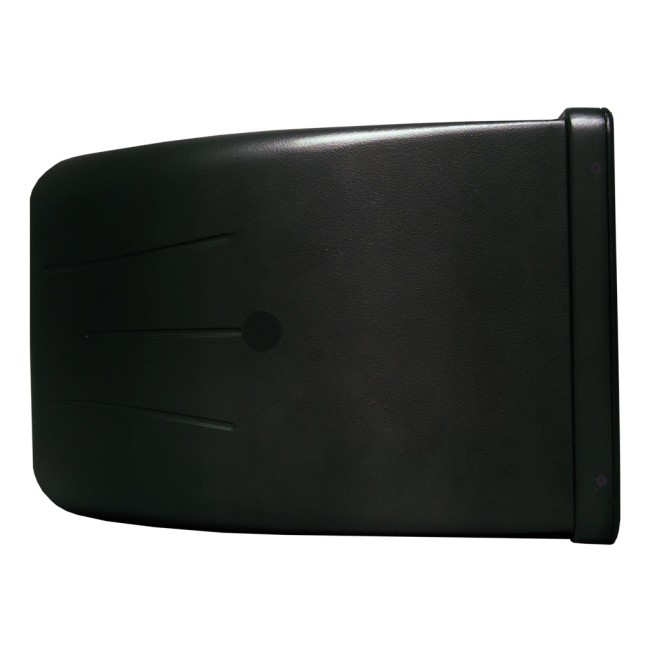

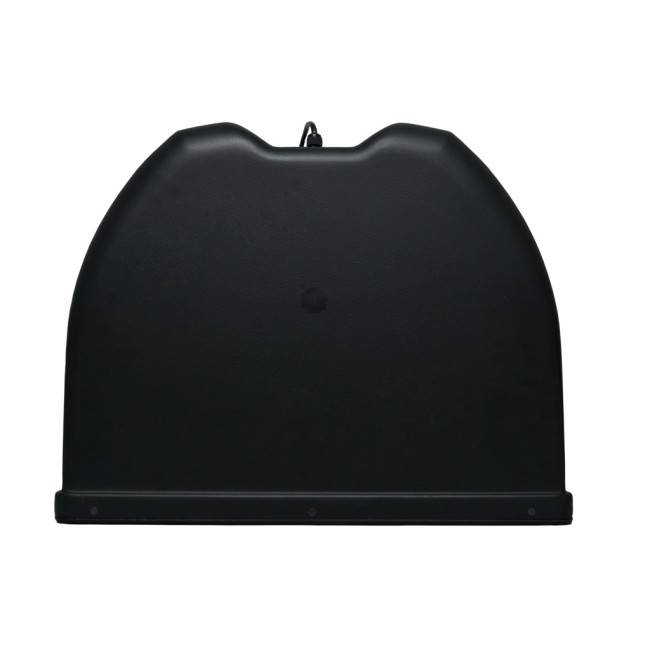

Equipson Work WFS 10 CX Outdoor Sound Projector
- This audio projector has been designed for outdoor appliances. It incorporates a 10" coaxial transducer and a 1" compression driver.
- Brand:
*only1 item(s) remaining
-
AED 3,812.55
- -
- +
*Rate inclusive of VAT. Delivery time: 2 - 4 days
This audio projector has been designed for outdoor appliances. It incorporates a 10" coaxial transducer and a 1" compression driver.It elevate IP range (IP 65) makes it very suitable for sports facilities, entertainment complexes, etc.Its 90ºx90º directivity in most of the band, making easier the contractors job designing an installation with the adequate audio dispersion. Its 2 connectivity modes (low impedance 8 Ohm and 100V line) allows to set the devices to several acoustic solutions.
WFS 10 CX incorporates the WSTB 10 H for an easy and fast installation.
| Type | Passive audio projector. 2 ways |
| Low Impedance Power | 150 W RMS |
| L100V Power | 120 W |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 10" Woofer |
| HF Transducer | 1" Compression driver |
| Sensitivity (1W @ 1m) | 104 dB |
| SPL Max | 126 dB / 131 dB peak |
| Coverage Angle (H x V) | 90º x 90º (500 Hz - 4 KHz) |
| Frequency Range | 89 Hz - 20.5 KHz |
| HPF filter recommended | 72 Hz |
| Enclosure material | Fiberglass |
| Grill | Metal |
| Inserts / Rigging | Installation bracket WSTB 10 V and WSTB 10 H |
| Colour | Black or white |
| IP Protection | IP 65 |
