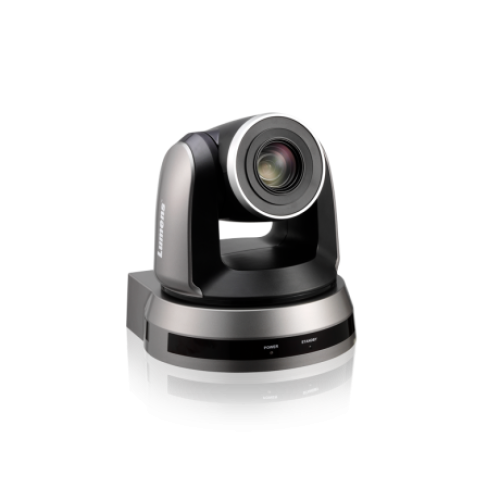

The VC-TA50 is a single-lens HD tracking camera, suitable for use in education, worship, studio production, business presentations, and unified communications. Featuring AI-powered human face recognition, the VC-TA50 can follow a subject smoothly and reliably, with no need for tracking software, 3rd party hardware, or the use of tracking dongles. VC-TA50 features programmable in-camera tracking modes which give users the flexibility to track a subject automatically and only within user-specified zones. Equipped with Lumens' Smart AF technology, VC-TA50 intelligently maintains focus on the subject's face to deliver sharp and well-framed pictures.
The VC-TA50 supports multiple streaming protocols, compliant with most video production, video conference, and streaming applications, including Zoom, Teams, WebEx, Google Meet, Wowza, YouTube, OBS, and Wirecast. The camera's HDMI and 3G-SDI ports enable users to integrate the camera with video production, lecture capture, and live event workflows.
AI-Powered Human Face Recognition
- Three Tracking modes with auto framing
- 1080P 60fps with 20x Optical Zoom
- HDMI, SDI, and Ethernet simultaneous output
- Supports RTSP / RTMP / RTMPS / SRT
- 5-Year Warranty
FEATURES
Everywhere Tracking Mode
The camera will follow wherever the presenter goes. You can simply change the tracked subject by clicking on the individual via the web interface.Partition Tracking Mode
When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.Stage Tracking Mode
When inside the Tracking Area, the camera follows the presenter with only a pan (left-right) movement. When the presenter moves outside the Tracking Area, the camera stops following.Smooth Pan-Tilt-Zoom Movement
Whether in auto-tracking or manual mode, VC-TA50 offers a smooth pan, tilt, and zoom movements. The speed of camera movement can be set to meet the needs of each production.Smart AF
The Smart AF feature keeps the presenter’s face in sharp focus even when they move across a stage. This advanced feature delivers fast, reliable, and accurate focusing performance.Sensor
1/2.8" 2.16 MP CMOS
Video Format
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25
1080i : 60 / 59.94 / 50
720p : 60 / 59.94 / 50
1080i : 60 / 59.94 / 50
720p : 60 / 59.94 / 50
Video Output (HD) Interface
3G-SDI / HDMI / Ethernet
Optical Zoom
20x
Viewing Angle
57° (H) / 32.1° (V) / 65.4° (D)
Aperture
F1.6~F3.8
Focal Length
5.33mm~110mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
1.0 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
AR/VR Systems
FreeD
Tally Light
Yes
Auto Tracking
Everywhere / Stage / Partition
Auto Framing
Yes
Panning Angle
+170 ~ -170°
Panning Speed
300°/sec
Tilting Angle
+90 ~ -30°
Tilting Speed
300°/sec
Preset Positions
128
HDMI / 3G-SDI
1080p60
IP Stream
First : H.264 1080p 60fps
Second : H.264/MJPEG D1 30fps
Second : H.264/MJPEG D1 30fps
IP Compression
H.264 / MJPEG
IP Protocol
RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE+ (IEEE802.3at)
Audio Input
Line In / MIC In
Audio Output
Ethernet / SDI / HDMI
Audio Compression Format
G.711
Interface
RS-232 / RS-422 / Ethernet
Protocol
VISCA / VISCAIP / PELCO D / ONVIF
IR Pass-Through
Yes
IR Receiver
Yes
IR Remote Control
Yes
DC In
12V +/- 20%
Power Consumption
PoE : 18.5W
DC In : 17W
DC In : 17W
Body Color
Black / White
Weight
4.4 lbs (2 kg)
Dimensions
6.9" x 7.3" x 7.3"
(174 x 186 x 187mm )
(174 x 186 x 187mm )
