Product Code:01IDS312PW

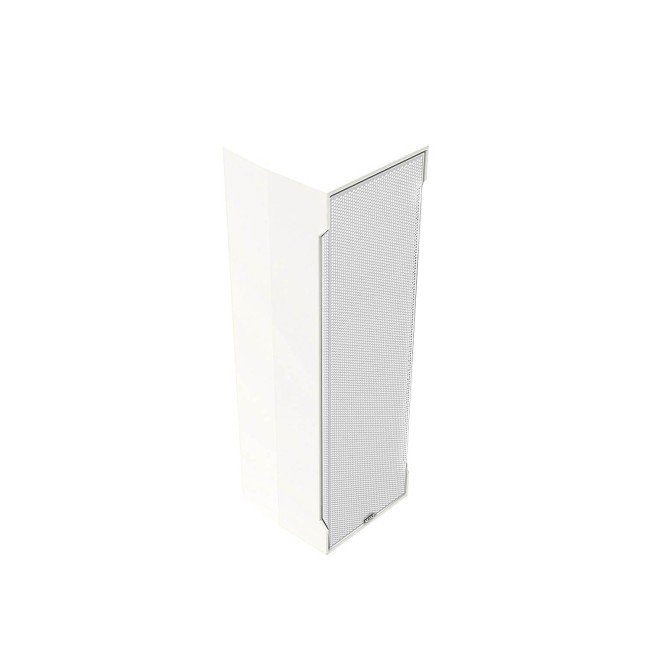

Nexo IDS312-T Touring Column Speaker - Passive White
- IDS312 dedicated sub for ID84 columns features a convenient system for mounting and connecting an ID84 cabinet on top, extending system LF response down to 40Hz and creating a full range system that’s 2 metres in height.
- Brand:
*Out of Stock
-
AED 10,888.71
- -
- +
*Rate inclusive of VAT. Delivery time: 2 - 4 days
Measuring 1160mm x 380mm x
350mm (45.7 x 15.0” x 13.8”) and weighing 31kg (68lbs), the IDS312 dedicated
sub for ID84 columns features a convenient system for mounting and connecting
an ID84 cabinet on top, extending system LF response down to 40Hz and creating
a full range system that’s 2 metres in height. Constructed from 15mm Baltic
birch plywood, the IDS312 also features rubber strips to isolate vibration in
horizontally-mounted applications.
Available in black, white
and custom RAL colours, the touring version (IDS312-T) is IP2X rated and
features a steel grille and Speakon connectors
KEY
FEATURES
· Powerful column sub that can be stacked with or without its
companion main speaker the ID84
· Can be stacked horizontally or vertically
· Ideal size to bring the ID84 to the audience height
· Lightweight (31 kg / 68 lbs) using Neodymium drivers and birch
plywood enclosure
· Touring version with Magnelis steel grille and Speakon
connectivity
· Black, white and custom RAL colours
| Frequency Response @-6 dB | 40 Hz to 120 Hz |
| Sensitivity | 105 dB SPL Nominal |
| Peak SPL@1m | 138 dB |
| Available Crossover Frequencies | 40-85 Hz, 40-120 Hz, 40-150 Hz, 63-120 Hz, 63-150 Hz |
| Nominal Impedance | 2Ω |
| Recommended Power | 1300 to 2100 Watts / 2Ω |
| Components | 3 x Neodymium 12" 6 Ohms long excursion |
| Connectors | 2 NL4 connectors (1+/1- & 2+/2-) + Quick connect system for ID84 |
| Rigging Points | 1 x pair of M6 rigging points to link the IDS312 to a base plate |
| Construction | 15mm baltic birch plywood |
| Finish | Black structural paint (RAL9005), White structural paint (RAL9016) or Custom RAL |
| Front Finish | Magnelis® Front grille |
| Operating temperature range | 0°C - 40 °C (32° F - 104° F) |
| Storage temperature range | -20 °C - 60 °C (-4 ° F - 140° F) |
| Height x Width x Depth | 1160mm x 380mm x 350mm (45.7" x 15.0" x 13.8") |
| Weight: Net | 31 kg (68 lbs) |
| IP Rating | IP2X |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered TDcontroller: 1 x IDS312 per channel |
| Electronic controllers | NXAMP4x2mk2 Powered TDcontroller: 1 x IDS312 per channel |
| NXAMP4x4mk2 Powered TDcontroller: 1 x IDS312 per channel |
