The RØDE Complete Studio Kit contains everything you need to make professional, studio-quality recordings at home. Featuring our AI-1 audio interface, peerless NT1 large-diaphragm condenser microphone, plus an SM6 shock mount and XLR cable, it’s the perfect first step into recording.
Key Features
- NT1 large-diaphragm condenser microphone delivers superb detail and warmth, and extremely low self-noise (just 4.5dBA).
- AI-1 features an ultra-low-noise XLR input and a discreet, high-power headphone amplifier for studio-quality recording, monitoring and mixdown.
- The Neutrik™ combi-jack input facilitates the connection of microphones, guitars, synthesisers and other instruments for ultimate flexibility.

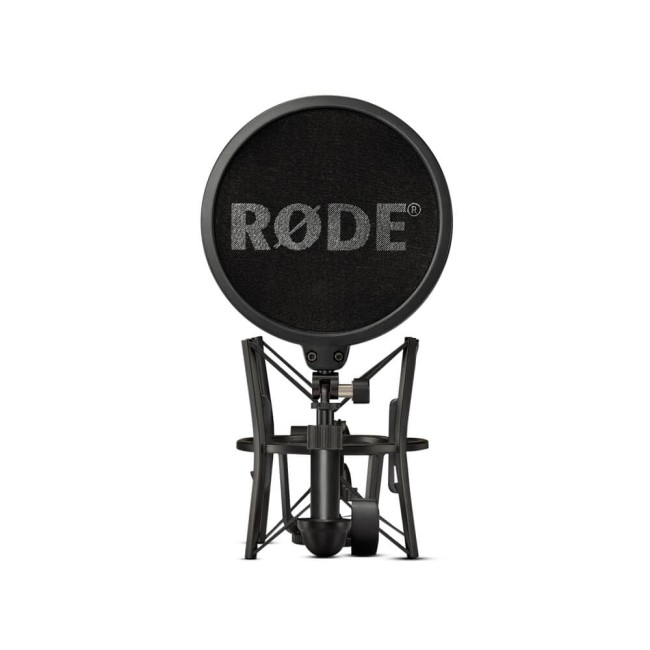

- Includes the studio-grade SM6 shock mount and pop filter, and an XLR cable so you can get recording right away.
- Ableton Live Lite free with every purchase.
NT1 Specifications
Output Connection
3 Pin XLR. Balanced output
between pin 2 (+), pin 3 (-)
and pin 1 (ground)
Acoustic Principle
Pressure gradient
Active Electronics
JFET impedance converter
with bipolar output buffer
Directional Pattern
Cardioid
Frequency Range
20Hz ~ 20kHz
Output Impendence
100Ω
Equivalent Noise
4.5 dBA SPL (as per IEC651)
Maximum Output
+8 dBu (1kHz, 1% THD into
1K Ω load)
Sensitivity
-29 dB re 1V/Pa
(35mV @ 94dB SPL)
± 2dB @ 1kHz
Dynamic Range
128 dB SPL
Maximum SPL
132 dB SPL
Signal-to-Noise Ratio
90 dBA SPL (as per IEC651)
Power Requirements
24V phantom power
48V phantom power
Net Weight (grams)
395
Colour
Black
Diameter (millimetres)
50
Length (millimetres)
187
AI-1 Specifications
Computer Connectivity
USB
Form Factor
Desktop
Simultaneous I/O
1 x 2
Number of Preamps
1
Bit Depth
24-bit
Sample Rates
44.1 kHz
48 kHz
88.2 kHz
96kHz
Analog Inputs
1 x Neutrik XLR-1/4” combo
Analog Outputs
2 x 1/4” (impedance balanced)
1 x 1/4” (headphones)
Direct Monitor
Yes
USB
1 x USB Type C
Bus Powered
Yes
OS Requirements
Mac OS 10.10 or later
Windows 7 or later
Power
USB bus-powered
Net Weight (grams)
560
Height x Width x Depth (millimetres)
38 x 124 x 100
