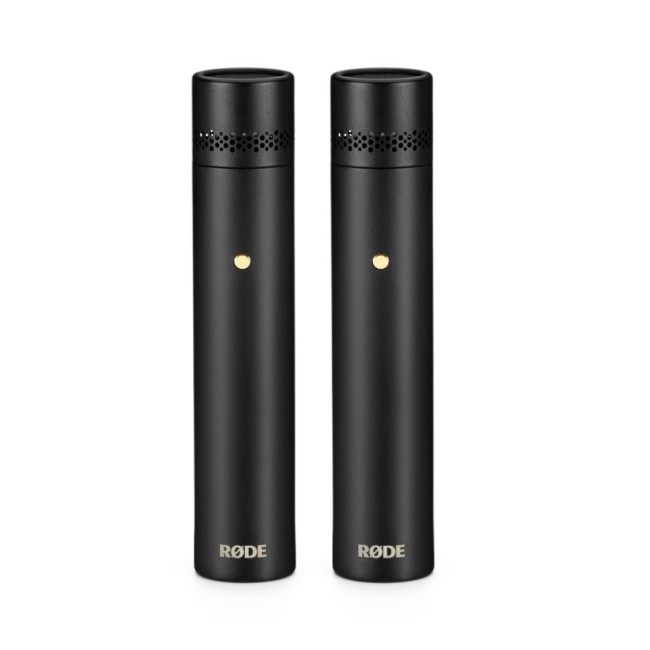

RODE TF-5 Premium Small-diaphragm Condenser Microphones
- The RØDE TF-5 is a high-performance small-diaphragm condenser microphone designed for unparalleled clarity and precision in professional audio recordings.
- Brand:
- Product Code:TF5MP
The TF-5 represents a new standard for small-diaphragm condensers. Offering the hallmark clarity and airiness you'd expect from a world-class 'pencil' mic, with a warm, natural character that sets it apart, the TF-5 is uniquely versatile.
Offered in a precision-matched pair, the TF-5 is the perfect microphone for a wide range of applications where incredible accuracy and detail is required, from stereo orchestral recording to capturing the nuances of an individual performance when used as a spot mic.
Key Features
- Precision-matched small-diaphragm cardioid condenser microphones
- Ultra-low noise, flat frequency response
- Tight cardioid polar pattern
- Warm, detailed sound
- Designed in collaboration with Grammy award winning classical producer and engineer, Tony Faulkner
- Comes in complete stereo recording kit, including the RODE Stereo Bar, mic clips and windshields
Acoustic Principle
Externally biased condenser
Active Electronics
JFET impedance converter with bipolar output buffer
Polar Pattern
Cardioid
Frequency Range
20Hz - 20kHz
30Hz - 20kHz ±3dB // 20Hz - 20kHz ±4dB
Output Impedance
63Ω
Signal-to-Noise Ratio
80 dB
Equivalent Noise
14 dB SPL (A-weighted, as per IEC651)
Input SPL @ 1% THD
135 dB SPL (1kHz @ 1% THD, 600Ω load)
Sensitivity
-29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)
Dynamic Range
112.6 dB (1kHz @ Max SPL)
Power Requirements
7mA @ 48V phantom power
Weight
114g (single microphone)
Dimensions
Length: 98.7mm
Diameter: 20mm
