Product Code:A2060H

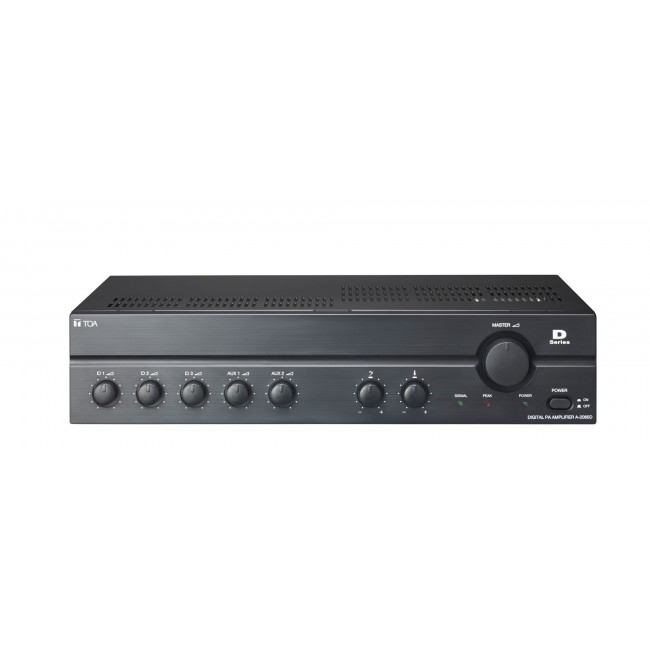

TOA A-2060H Mixer Power Amplifier (H version)

  • The A-2060 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
  • Brand:
*Out of Stock
  • AED 1,337.70

  • -
  • +
*Rate inclusive of VAT. Delivery time: 2 - 4 days

Multi-purpose, multi-function mixer/power amplifiers specifically designed for maximum versatility and cost-effective high-performance are ideal units for any PA requirement in locations such as shops and offices and other small to intermediate sized environments. A choice of different power outputs are offered as well as as paging override of BGM.

  • 60 W rated output
  • User-friendly front panel allows easy operation
  • Excellent frequency response
  • 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
  • Phantom power is provided to MIC 1, for supplying power to a condenser microphone
  • Wide tone-control adjustment range of ±10dB for both bass and treble
  • 100 V / 70 V line or 4 Ω speaker outputs
  • Recording output
  • 3 MIC inputs, 2 AUX inputs for tuner, cassette player or other BGM sources
  • 2-unit size
A-2060
Power source

220 - 240 V AC, 50 / 60 Hz (24 V DC)

Rated output

60 W

Frequency response

50 Hz - 20 kHz (±3 dB)

Distortion

< 1 % (at 1 kHz, 1/3 rated output power)

Power consumption

72 W (EN62368-1), 150 W (at rated output)

Speaker output

70/100 V, 4 Ω

Amplifier

analogue

Current consumption

4 A (24 V DC, at rated output)

S/N ratio

60 dB (or more)

Connectable microphones

3

Controls

Volume for each input, bass, treble, master volume

Inputs

MIC 1, 2, 3: -60dBV, 600Ω, electronically balanced, CE and CE-GB versions: MIC 1: DIN jack, H and SA versions: phone jack; MIC 2, 3: phone jack. AUX 1, 2: -20dBV, 10kΩ, unbalanced, 2 RCA PIN jacks each (stereo to mono).

Outputs

for Recording: 0 dBV, 600 Ω, unbalanced, RCA jack

Finish

ABS resin, Steel plate, black

Dimensions

420 x 100.9 x 280.3 mm (W x H x D)

Weight

7 kg
