Product Code:A2120H

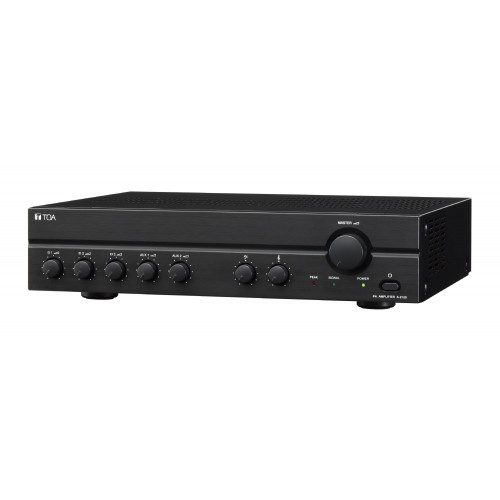

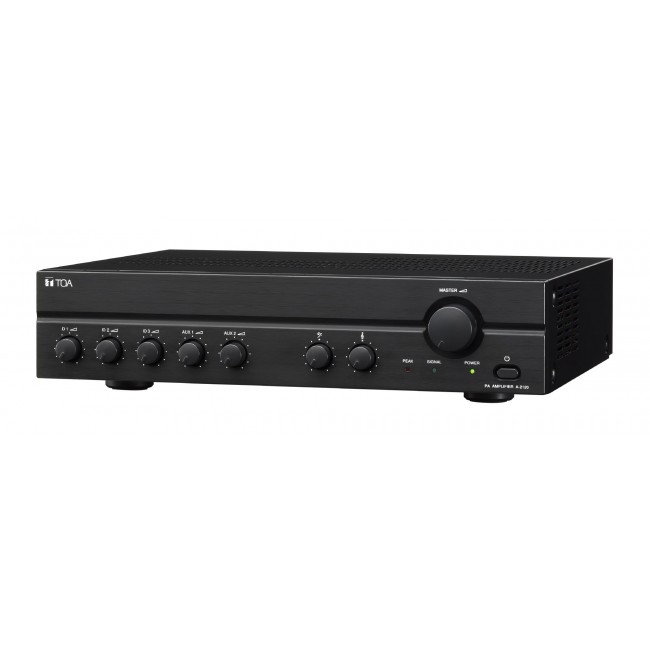

TOA A-2120H Mixer Power Amplifier (H version)
- The A-2120 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches, and large rooms.
- Brand:
*Out of Stock
-
AED 1,726.20
- -
- +
*Rate inclusive of VAT. Delivery time: 2 - 4 days
Multi-purpose, multi-function mixer/power amplifiers specifically designed for maximum versatility and cost-effective high-performance are ideal units for any PA requirement in locations such as shops and offices and other small to intermediate sized environments. A choice of different power outputs are offered as well as as paging override of BGM.
- 120 W rated output
- User-friendly front panel allows easy operation
- Excellent frequency response
- 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
- Phantom power is provided to MIC 1, for supplying power to a condenser microphone
- Wide tone-control adjustment range of ±10dB for both bass and treble
- 100 V / 70 V line or 4 Ω speaker outputs
- Recording output
- 3 MIC inputs, 2 AUX inputs for tuner, cassette player or other BGM sources
- 2-unit size
| A-2120 | |
|---|---|
| Power source |
220 - 240 V AC, 50 / 60 Hz (24 V DC) |
| Rated output |
120 W |
| Frequency response |
50 Hz - 20 kHz (±3 dB) |
| Distortion |
< 1 % (at 1 kHz, 1/3 rated output power) |
| Power consumption |
124 W (EN 62368-1), 260 W (at rated output) |
| Speaker output |
70/100 V, 4 Ω |
| Amplifier |
analogue |
| Current consumption |
8 A (24 V DC, at rated output) |
| S/N ratio |
60 dB (or more) |
| Connectable microphones |
3 |
| Controls |
Volume for each input, bass, treble, master volume |
| Inputs |
MIC 1, 2, 3: -60dBV, 600Ω, electronically balanced, CE and CE-GB versions: MIC 1: DIN jack, H and SA versions: phone jack; MIC 2, 3: phone jack. AUX 1, 2: -20dBV, 10kΩ, unbalanced, 2 RCA PIN jacks each (stereo to mono). |
| Outputs |
for Recording: 0 dBV, 600 Ω, unbalanced, RCA jack |
| Finish |
ABS resin, Steel plate, black |
| Dimensions |
420 x 100.9 x 280.3 mm (W x H x D) |
| Weight |
10.8 kg |
