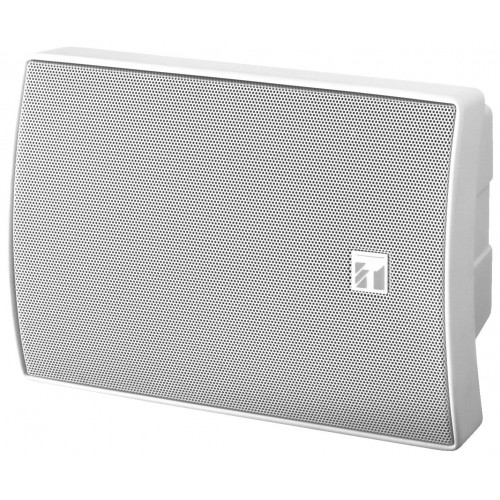

The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030B can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
- 2-way bass reflex speaker
- Cost-effective high power PA box speaker
- Various installation options
- Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
- Splashproof construction in compliance with IPX4
| BS-1030W | |
|---|---|
| Frequency response |
80 Hz - 20 kHz |
| Connection |
2-core cabtyre cable (6 mm diameter) |
| Sensitivity (1 W, 1 m) |
90 dB |
| Speaker component |
12 cm dynamic cone-type speaker, 2.5 cm balanced dome tweeter |
| Rated input (High Impedance) |
30 W |
| Tappings |
100 V line: 330 Ω (30 W) / 500 Ω (20 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) 70 V line: 170 Ω (30 W) / 250 Ω (20 W) / 330 Ω (15 W) / 500 Ω (10 W) / 1 kΩ (5 W) |
| Rated impedance |
8 Ω |
| Operating temperature |
-10°C to +50°C |
