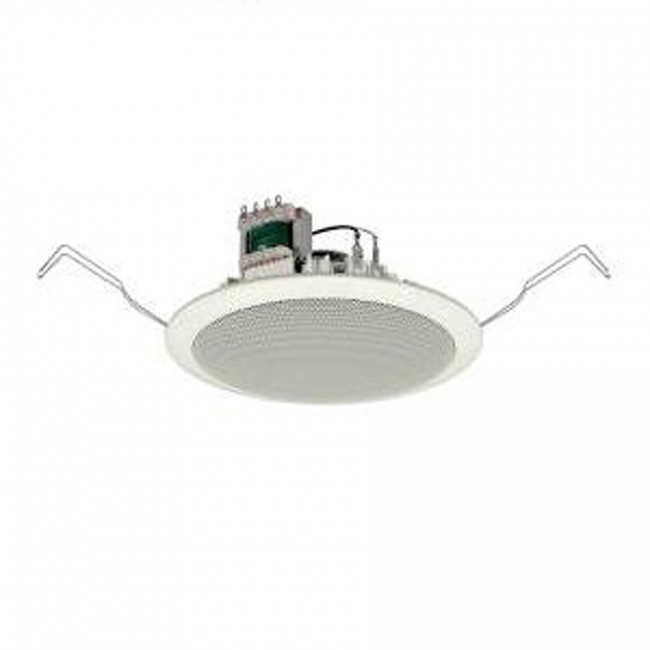

The PC-648R is a ceiling mount speaker with a resin panel and speaker frame. It features a spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by adjusting the tap position of the transformer.
- Special design for thin ceiling
- Spring clamp mechanism for easy speaker mounting to the ceiling
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
|---|---|
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Frequency Response | 100 Hz - 18 kHz (peak -20 dB) |
| Speaker Component | 12 cm (5") cone-type |
| Dimensions for Fixing Hole | Mounting hole: φ145±5 mm (φ5.71"±0.2") Ceiling thickness: 5 - 25 mm (0.2" - 0.98") |
| Speaker Mounting Method | Spring clamp |
| Finish | Baffle: Polypropylene resin, white (RAL 9016 equivalent) Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint |
| Dimensions | φ168 × 77 (D) mm (φ6.61" × 3.03") |
| Weight | 470 g (1.04 lb) |
| Accessory | Paper pattern …1 |
