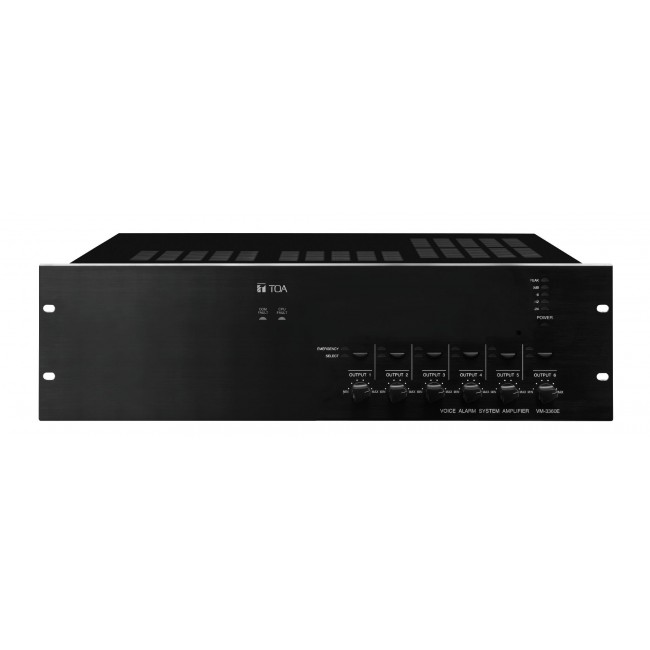

Extension Amplifier
- Expansion unit for VM-3000 System management amplifier, up to 9 extension possible
- 360 W rated output
- 6 speaker line outputs
- For BGM: output selection with volume control on front panel
- 8 control inputs and 8 control outputs for general purpose
- 6 control inputs for emergency purpose and 3 control outputs for status information
| VM-3360E | |
|---|---|
| Power source |
230 V AC, 50 / 60 Hz (24 V DC) |
| Rated output |
360 W (total into 6 zones) |
| Frequency response |
50 Hz - 20 kHz (at 1/3 rated output) |
| Distortion |
< 0.7 % |
| Power consumption |
850 W (with rated output signal), 380 W (according to EN 60065) |
| S/N ratio |
85 dB (or more) |
| Inputs |
External amplifier Input: 100 V Line removable terminal block (14 pins) Local input -50 dBV (Mic) / -10 dBV (Line), 600 Ω / electronically balanced, removable terminal block (14 x 2 pins) |
| Outputs |
Speaker output 1 - 6: Total within rated output, removable terminal block (14 pins) Direct output from internal or external amplifier, removable terminal block (16 pins) |
| Control input |
Input 1 - 8: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: under 2 mA, removable termial block (14 pins) |
| Control output |
Ouput 1 – 8: Isolated open collector output, withstand voltage: 30 V DC, operating current: under 10 mA, removable terminal block (14 pins) |
| Indicator |
Power; 5-segment bargraph level meter, selected zone, emergency zone active, communication fault, CPU fault |
| Operating humidity |
5 to 95% RH (no condensation) |
