Product Code:AXIS

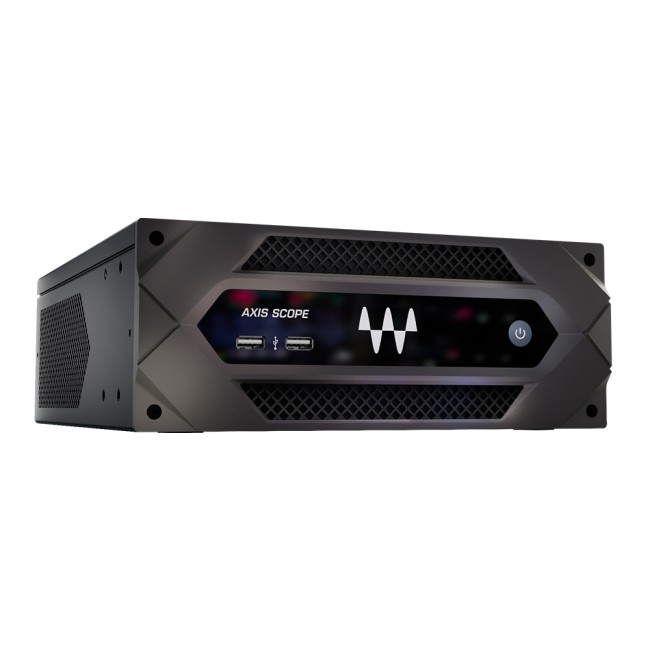

The Axis Scope computer is a reliable turn-key solution for live sound, broadcast, and the studio, custom-designed and optimized to run Waves audio applications such as eMotion LV1 and SuperRack.
Through careful selection of components and extensive, rigorous testing, Axis Scope is built from the ground up to deliver maximum stability and performance, fully optimized to match the needs of sound engineers using Waves software applications.
Featuring sleek new industrial design combining elegance and durability, and housed in a rugged rack-mountable case, Axis Scope allows you to deliver world-class sound reliably – anywhere, anytime.
Mount one device using rack ears or use a rack shelf to mount two devices side by side.
With its SoundGrid connectivity, Axis Scope acts as the “brain” of a SoundGrid system, seamlessly interfacing with SoundGrid I/O devices and servers. Use it at front-of-house, at monitor position, or in your broadcast AV rack – or add it to your studio for tracking, mixing and mastering.
CPU: Intel® i5-10600
RAM: 16 GB
Motherboard: Gigabyte GA-IMB410N
LAN Card: Intel® I211/I-219
Dimensions
Length: 22 cm / 8.7 in
Height: 8.6 cm / 3.4 in
Depth: 28.4 cm / 11.2 in
Device Weight: 3.4 kg / 7.5 lbs
Package Weight: 5 kg / 10.9 lbs
Power Consumption:
110/220V 65 W
Operating Environment temperature range:
50° to 95°F / 10° to 35°C
Max Environment temperature:
104°F / 40°C
