Perfectly suited for use with CZR full-range speakers, the CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance.
- 15” subwoofer with 4” Voice Coil
- High power 800W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- SpeakON NL4MP x 3 (Parallel x2, Output x1)
- Dual-pole socket
- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
- Durable Black finish
| CXS15XLF | ||
|---|---|---|
| Speaker type | Subwoofer, Bass-reflex | |
| Frequency range (-10dB) | Passive: 33 Hz - 3.5kHz, Normal (*1): 35 Hz - 150 Hz, Extend (*1): 33 Hz - 150 Hz | |
| Coverage area | - | |
| Floor Monitor Angle | - | |
| Components | LF | 15" Cone, 4" Voice Coil, Ferrite magnet |
| HF | - | |
| Crossover | - | |
| Power rating | NOISE | 400 W (EIA 426-A) |
| PGM | 800 W (EIA 426-A) | |
| PEAK | 1600 W (EIA 426-A) | |
| Nominal impedance | 8Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 98dB *2 |
| Peak (Calculated) | 130 dB *2 | |
| I/O connectors | SpeakON NL4MP x 3 (Parallel x2, Output x1) | |
| Handle | Aluminium die-cast, Side x2 | |
| Pole socket | Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) | |
| Rigging | - | |
| Dimensions | W | 450 mm (17.7") |
| H | 587 mm (23.1") (with rubber feet) | |
| D | 600 mm (23.6") | |
| Net weight | 35.6kg (78.5 lbs) | |
| Options | Cover: SPCVR-DXS15X, Caster: SPW-1 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White | |
Focused sound for flexible installation

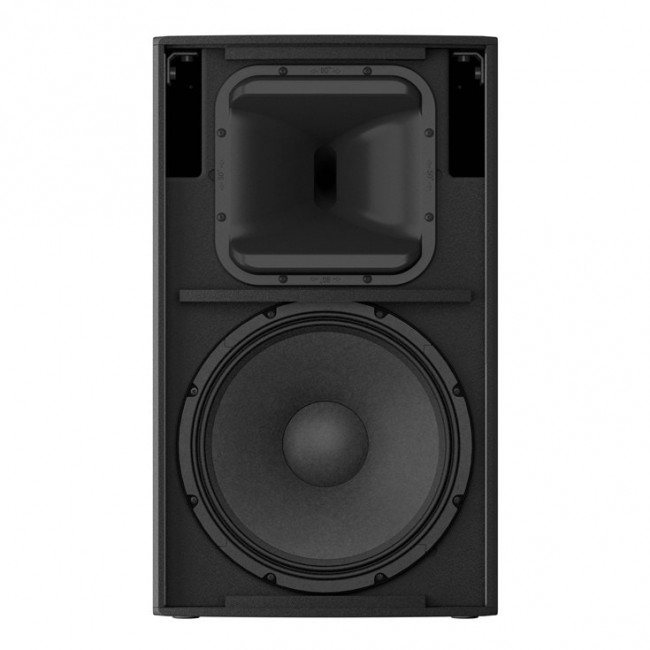

The CZR Series features 15˝, 12˝ and 10˝ models with transducers with die-cast aluminum frames with a 3˝ voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2˝ voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally.
Best in Class SPL performance
The CZR15 and CZR12 can both produce 129dB SPL with a power rating of 800W for the CZR15 and CZR12, and 700W for the CZR10 in passive mode. Every CZR model is also equipped with Biamp mode to maximize performance.
The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.
Intelligent processing to maximize system performance
When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information).
Premium materials. Road-tested toughness
The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.
Flexible Deployment Options
CZR Series loudspeakers come equipped with plenty of rigging points for any installation environment, allowing for rigged application with standard eyebolts*. Specialized U brackets are also available for convenient flying/hanging installation. *Eyebolts not included.
