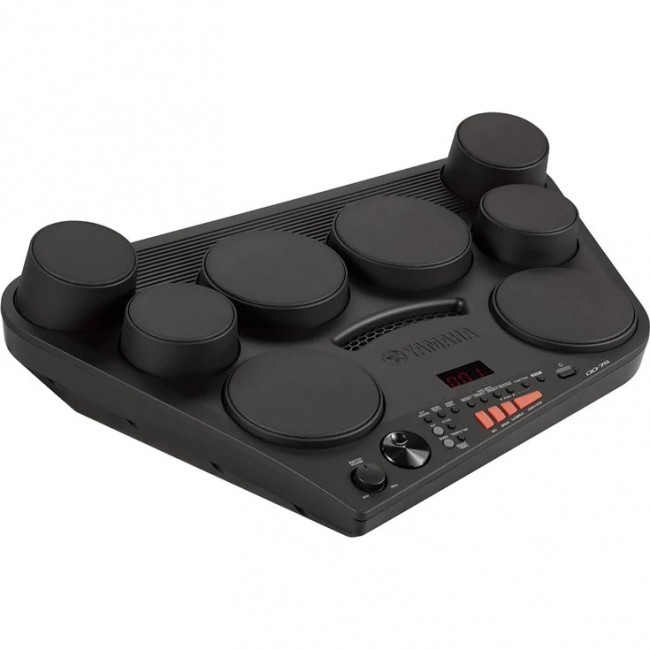

"The perfect all-in-one mini drum kit solution". Designed from a drummer's point of view. Play along with your favorite music!
- 8 touch-sensitive drum pads in an easy-playing layout allow for expressive drumming
- 2 assignable foot pedals included for kick, hi-hat or any other Voice
- Compact & portable design with battery operation allows you to play anywhere you want
- Headphone jack allows you to play anytime you want
- AUX IN jack for connecting and playing along with your favorite music
- 570 Voices assignable to any pad
- Hand Percussion Mode
- 105 built-in Songs for learning and playing along with
- 75 programmed Drum Kits + 10 Custom Kits
- 32-note polyphony
- Stereo speakers with bass port provide great sound quality
- Reverb and Master EQ
- Sensitivity adjustment for individual pads and bass pedal
- Record your own Songs (up to 5 in memory at one time)
- MIDI IN/OUT
| DD-75 | ||
|---|---|---|
| Body | Color | Black |
| Dimensions | Width | 602 mm (23-11/16") |
| Height | 180 mm (7-1/16") | |
| Depth | 411 mm (16-3/16") | |
| Weight | Weight | 4.2 kg (9 lb, 4 oz) (not including batteries) |
| Pad | Number of Pads | 8 |
| Touch Response | Yes | |
| Pedal | Number of Pedals | 2 |
| Functions | Hi-hat, Bass drum | |
| Display | Type | LED |
| Size | 7-segment, 3-digit | |
| Panel | Language | English |
| Tone Generator | AWM Stereo Sampling | |
| Maximum Polyphony | 32 | |
| Voices | 570 Voices + 30 Phrases | |
| Drum Kit | 75 Presets + 10 Customs | |
| Compatibility | GM | Yes |
| XGlite | Yes | |
| Types | Reverb | 9 types |
| Master EQ | 2 types | |
| Preset | Number of Preset Songs | 105 |
| Recording | Number of Songs | 5 |
| Number of Tracks | 4 (DRUM 1/DRUM 2/DRUM 3/BACKING) | |
| Data Capacity | Approx. 7,000 notes per song | |
| Recording Function | Yes | |
| Compatible Data Format | Playback | SMF (Format 0) (MIDI data only; audio not supported.) |
| Recording | SMF (Format 0) (MIDI data only; audio not supported.) | |
| Overall Controls | Metronome Sound | 4 types (Metronome/Cowbell/Stick/Human Voice) |
| Tempo Range | 11 - 320 | |
| Performance Modes | Hand Percussion Mode | |
| Other Control | Pad & Bass Pedal Sensitivity Adjustment: Preset:5 types (Fix, 1-4), Custom Setting:10 | |
| Storage | Internal Memory | Approx. 370 KB |
| Connectivity | DC IN | 12 V |
| Headphones | Standerd stereo phone jack | |
| Pedal Unit | 1, 2 | |
| MIDI | IN, OUT | |
| AUX IN | Stereo mini jack | |
| Amplifiers | 5 W + 5 W | |
| Speakers | 8 cm x 2 | |
| Power Supply | Adaptors | AC Adaptor PA-150 or an equivalent recommended by Yamaha |
| Batteries | Six 1.5 V "C" size alkaline (LR14), manganese (R14) or six 1.2 V "C" size Ni-MH rechargeable batteries (HR14) | |
| Battery Life | Alkaline battery:About 10 hours, Rechargeable Ni-MH battery:About 7 hours | |
| Power Consumption | 18 W | |
| Auto Power Off | Yes | |
| Included Accessories | Drum Sticks, Foot Pedal 1 & 2 | |
