PERFORMANCE OPTIMIZED
A legacy of sonic purity
The ideal starting point for any audio engineering endeavor is transparent, uncolored sound. All Yamaha mixers are built on that philosophy, with the goal of allowing engineers to capture the on-stage sound accurately, without coloration, and then add creative touches as required.

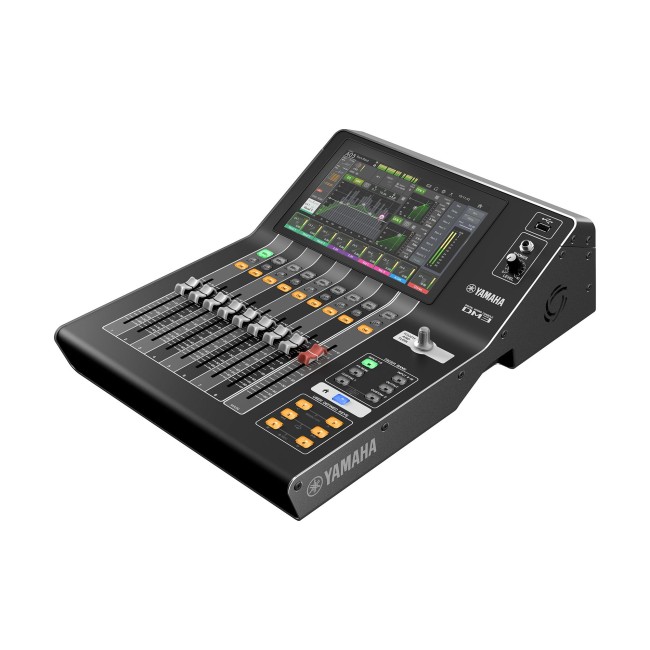

Capable of sampling rates as high as 96 kHz despite its compact size the DM3 Series continues this legacy of sonic purity, offering you the perfect starting point for mixing, recording, live streaming, or even installed applications.
Simple. Intuitive. Powerful.

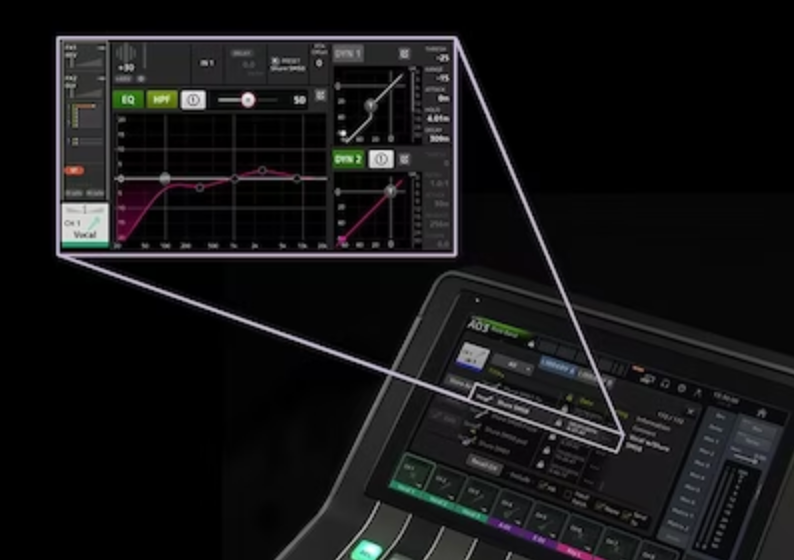

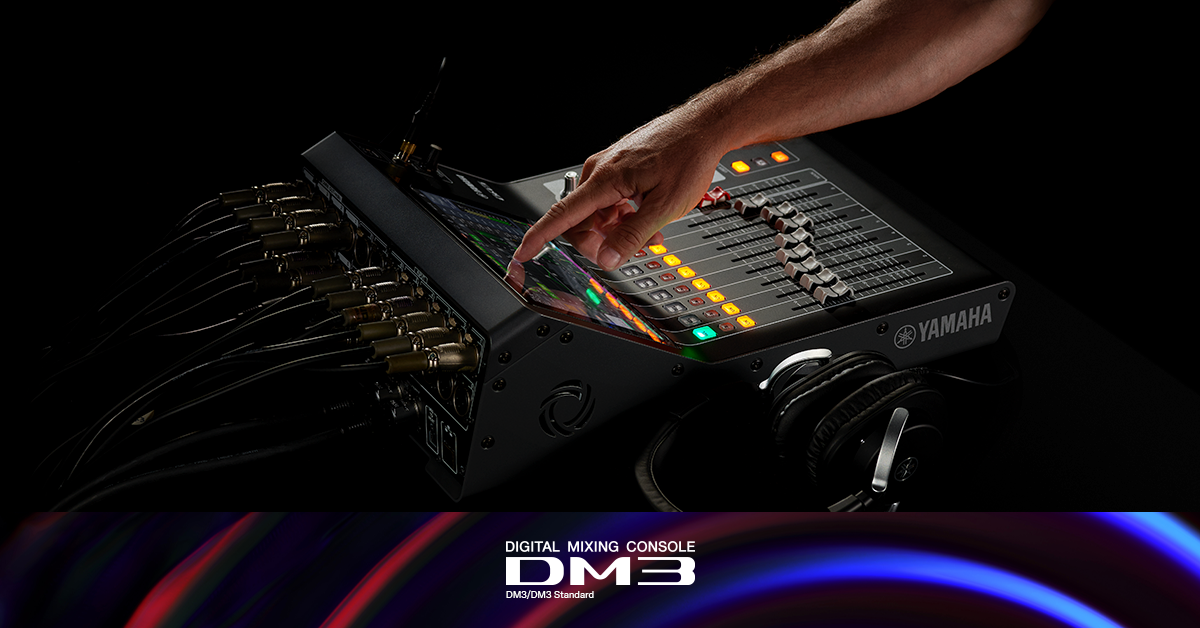

Perhaps the most significant advantage of a digital console is the ease of operation and accessibility of powerful functions and features that would otherwise require a higher level of user experience as well as more outboard gear to actualize in an analog setup. The DM3 Series exemplifies a “less is more” design philosophy, utilizing a 9” touchscreen and a single Touch & Turn knob for managing most of the console’s operations, resulting in a user experience reminiscent of a smartphone.
FEATURES
|
|
|
|
|

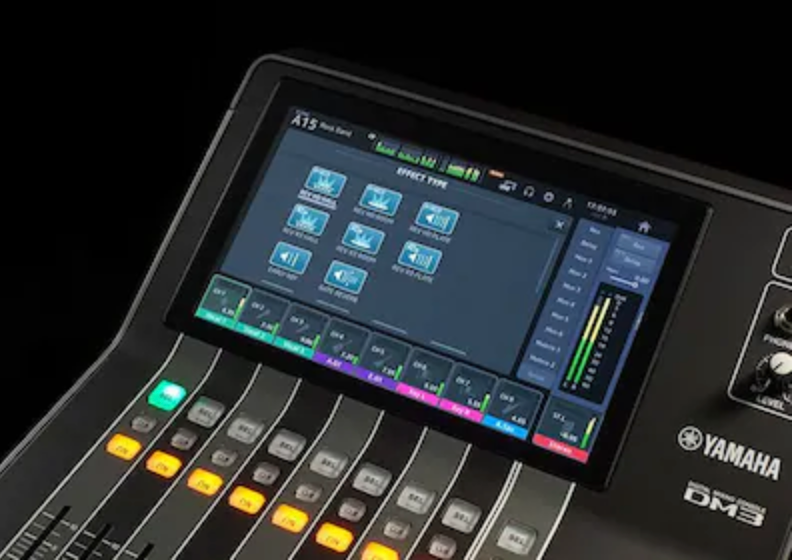

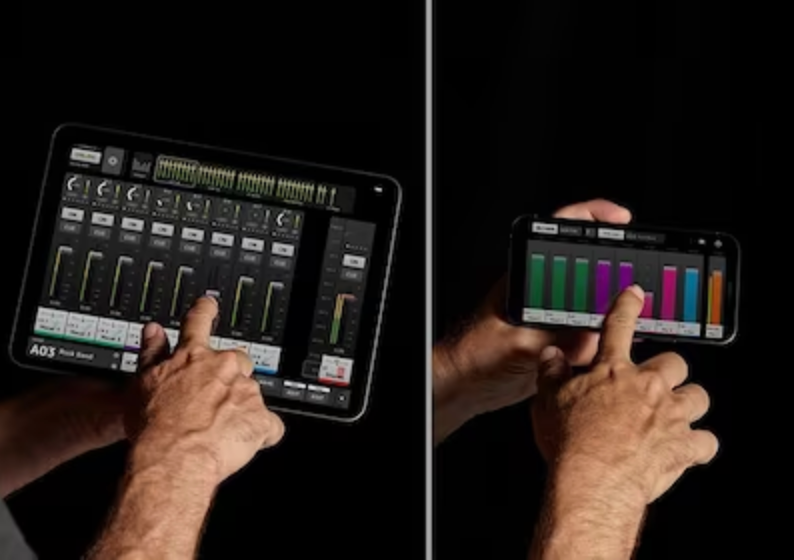

| Lightweight construction | The most compact Dante-compatible console | Effects to enhance the creativity of sound engineers | Scene Presets for your applications | A wealth of applications to support any venue |
| DM3 | ||
|---|---|---|
| Mixing Capacity | Input Channels | 16 mono + 1 stereo + 2 FX return |
| Mix Buses | 6 | |
| Matrices | 2 (Supports Input to Matrix) | |
| Stereo Buses | 1 | |
| FX Buses | 2 | |
| Cue Buses | 1 | |

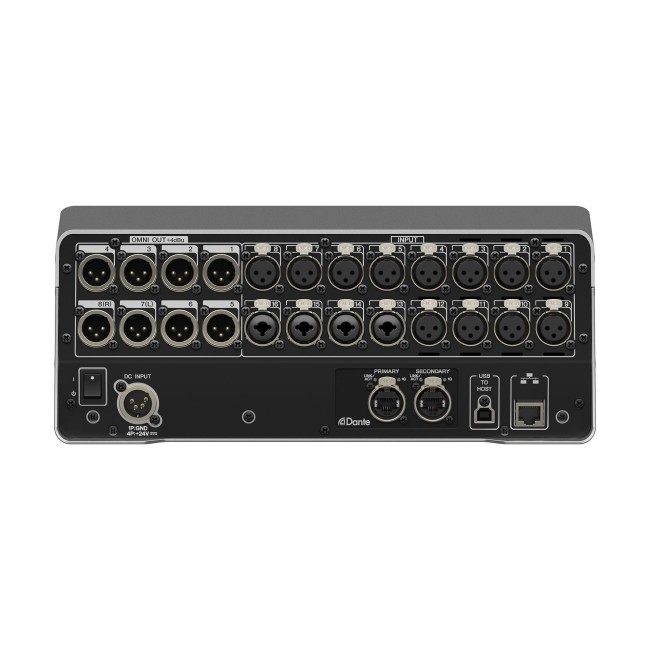

| I/O Connectors | Analog Input | 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) |
| Analog Output | 8 (XLR) | |

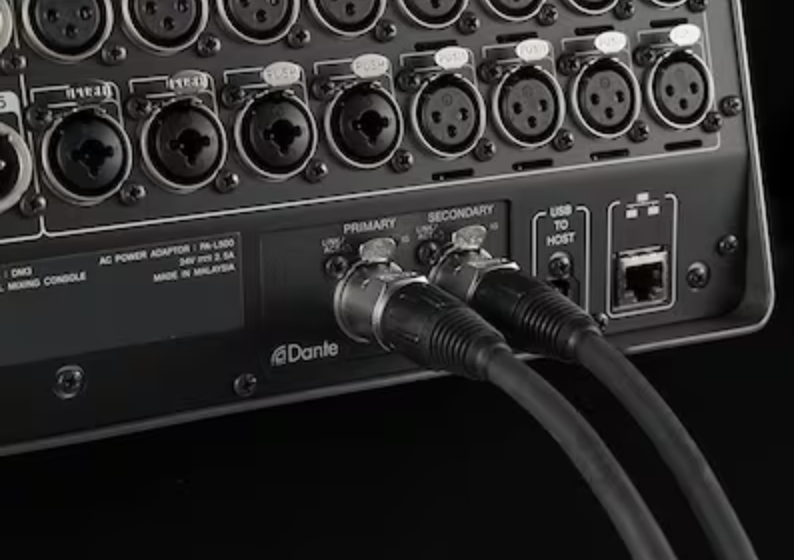

| Dante | 2 (etherCON: Primary/Secondary) | |
| Network | 1 (RJ-45) | |
| USB TO HOST | 1 (USB Type-B, USB2.0) | |
| USB TO DEVICE | 1 (USB Type-A) | |
| Phones | 1 (TRS Phones) | |
| DC | 1 (XLR 4pin, DC power IN) | |

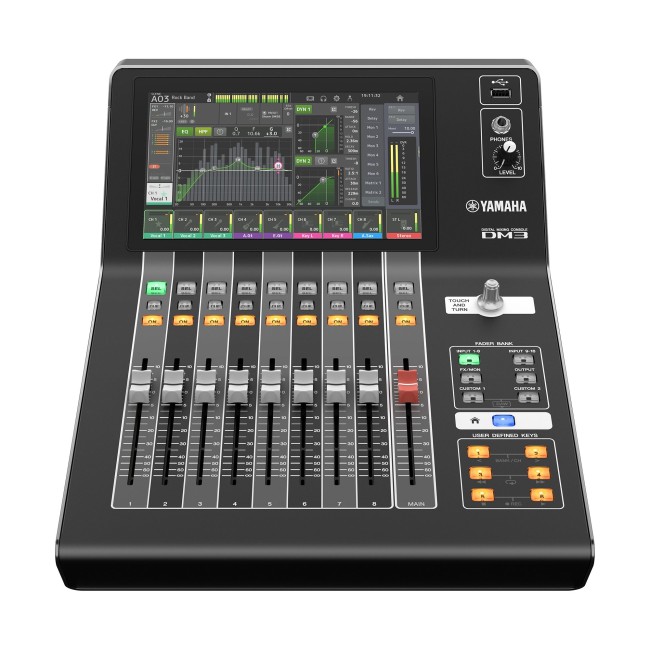

| User Interface | 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder | |
| Recording & Playback | PC/Mac | Recording 18 track, Playback 18 track |
| USB storage device | Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory) | |
| Sampling frequency rate | 96 kHz / 48 kHz | |
| Signal delay | Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz) | |
| Frequency response | +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT | |
| Total harmonic distortion | Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1 | |
| Hum & noise level | Equivalent input noise | -126 dBu typ., Input Gain= Max. |
| Residual output noise | -84 dBu, ST main off*2 | |
| Dynamic range | 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min. | |
| Crosstalk | -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3 | |
| Power requirements | DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz) | |
| Power consumption | 43 W | |
| Dimensions | W | 320 mm (12.6") |
| H | 140 mm (5.6") | |
| D | 455 mm (18.0") | |
| Net weight | 6.5 kg (14.3 lb) | |
| Included Accessories | Owner's Manual, Power Adapter, Download Information | |
| Accessories | RK-DM3 | |
| Operating temperature | 0 - 40 °C | |
| Storage temperature | -20 - 60 °C | |
