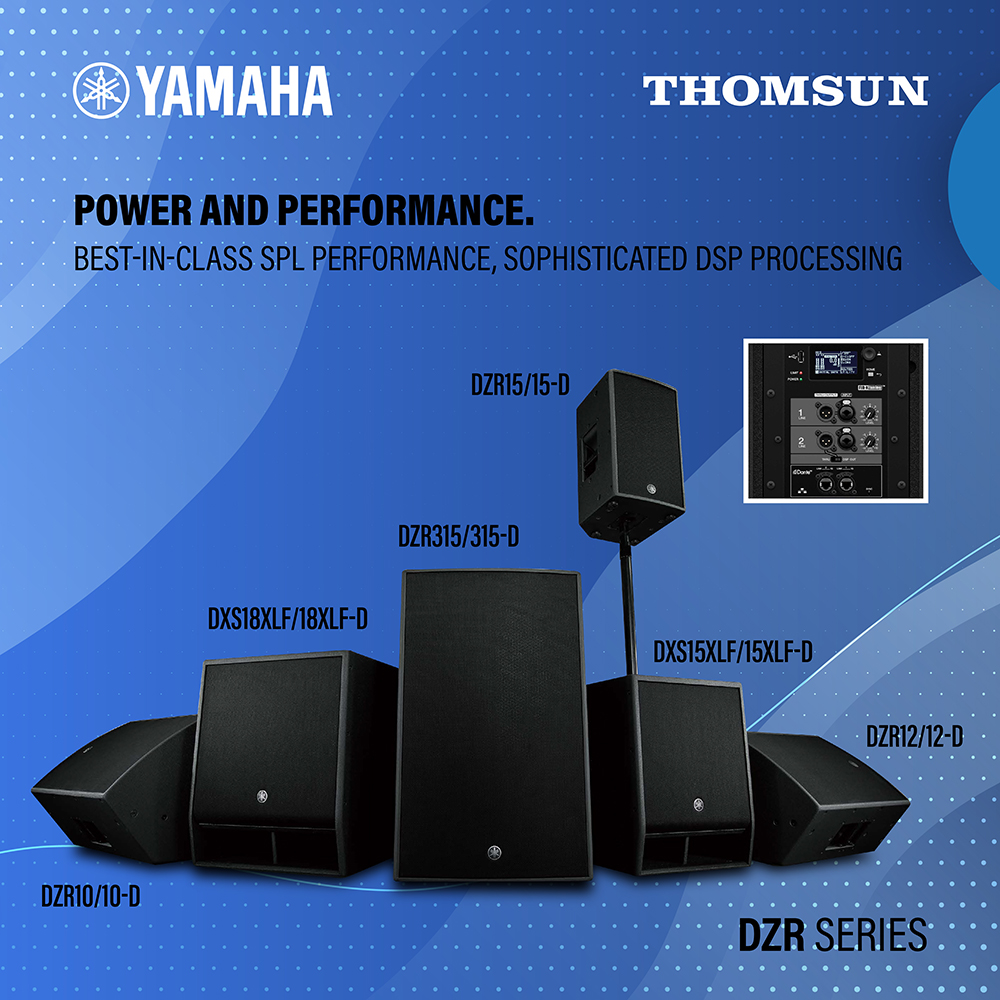

Yamaha's DZR speakers sit at the highest point of the organization's compact portable speaker range. The speakers are powered by new 2kW (peak) Class D amplifiers specifically optimized for the DZR range with integrated DSP processing (there’s also a passive CZR series available). The DZR series is the first Yamaha portable speaker range to use 96 kHz converters for higher resolution audio with low latency. Precise real-time control of amps, power supplies, drivers and output levels enables very high SPL levels without anything distorting or breaking. The specs are crazy. Pink noise @ 1m on the DRZ10 can reach 137dB, for the DRZ12 and DRZ15 that rises to 139dB, while the DRZ315 can output a blistering 143dB.
Three of the four models in the DZR range are two-way designs with newly developed 10-, 12- and 15-inch woofers with three-inch voice coils, weight saving aluminium frames and neodymium magnets. High frequencies are produced by a two-inch voice coil and neodymium magnet with a titanium diaphragm into a one-inch throat compression driver and constant directivity horn, which is rotatable for flexible installations and stage monitor applications. The biggest model, the DZR315, is a three-way design with an eight-inch mid-driver as well as the 15-inch woofer and horn.
The features of DZR series are,
§ Advanced FIR-X Tuning
96 kHz DSP processors help focus the considerable power output of the DZR into truly high-resolution sound with super-low latency. Yamaha’s newly developed Advanced FIR-X tuning improves significantly on our proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ. An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presents, and make precise adjustments to PEQ, delay, and routing.
§ High power 2000W Class-D amplification
The all new, highly efficient Class-D amplification module produces best-in-class 2000W of power and impressive 143 dB SPL. A universal switching mode power supply with PFC maximizes the power output while ensuring stable and worry-free operation. All the amplifiers were selected and optimized to match the full-range DZR’s high, mid and low frequency transducers, while separate, customized amps were developed for the DXS-XLF subwoofers as well.
§ The first Dante-equipped professional SR loudspeakers
All DZR speakers and DXS_XLF subwoofers come in Dante-equipped “D” models enabling smart system integration with Yamaha consoles and other Dante devices via the Dante I/O which also features SRC allowing 48 kHz device compatibility. Patching is simplified considerably with Yamaha CL/QL digital mixing console from the I/O device display, while TF console users can select Quick Config for surprisingly fast, easy set up and operation of a sophisticated sound reinforcement system.
§ Smart design for professional functionality
DZR 15, DZR 12 and DZR 10 speakers feature a rotatable horn to allow vertical or horizontal mounting to further adapt to the acoustic dimensions of a venue. The coverage angle of the DZR 15 is 90x50 degree and the DZR 12 and DZR 10 have 90x50 degree dispersion from a vertical position. The constant directivity horns were designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.
DZR315 / DZR315-D
The DZR315-D is a 3-way, Bi-ampled Powered Speaker, Bass-reflex and a Dante-equipped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. DZR315/DZR315-D having a frequency range of 31Hz - 20 kHz. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
DZR15/ DZR15-D
The DZR15-D is a 2-way, Bi-amped Powered Speaker, Bass-reflex, Dante-equipped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. DZR15/DZR15-D having a frequency range of 34Hz - 20 kHz. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR15-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
DZR12/ DZR12-D
The DZR12-D is a 2-way, Bi-amped Powered Speaker, Bass-reflex, Dante-equipped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. DZR12/DZR12-D having a frequency range of 39Hz - 20 kHz. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
DZR10/ DZR10-D
The DZR10-D is a 2-way, Bi-amped Powered Speaker, Bass-reflex, Dante-equipped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 137dB. DZR10/DZR10-D having a frequency range of 44Hz - 20kHz.With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
DXS18XLF/ DXS18XLF-D
Perfectly suited for use with DZR full-range speakers, the DXS18XLF-D is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power. DXS18XLF-D having a frequency range of 30Hz - 150Hz.
DXS15XLF/ DXS15XLF-D
Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power. DXS15XLF-D having a frequency range of 33Hz - 150Hz.
