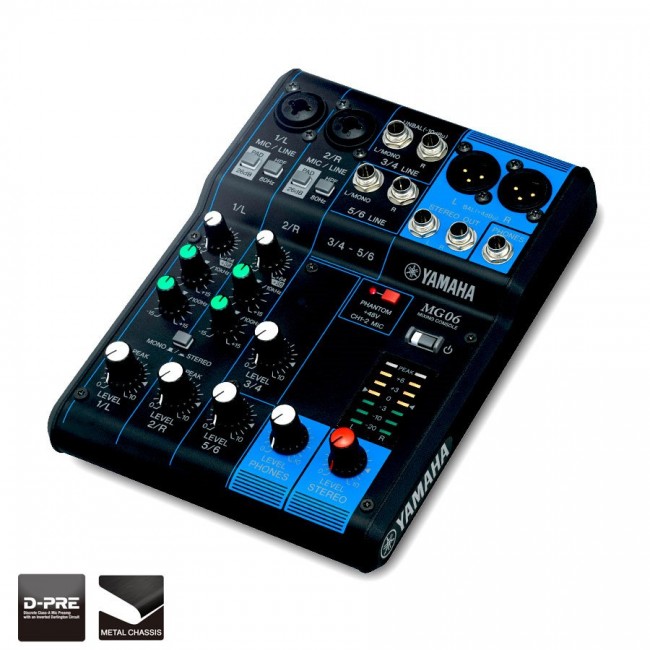

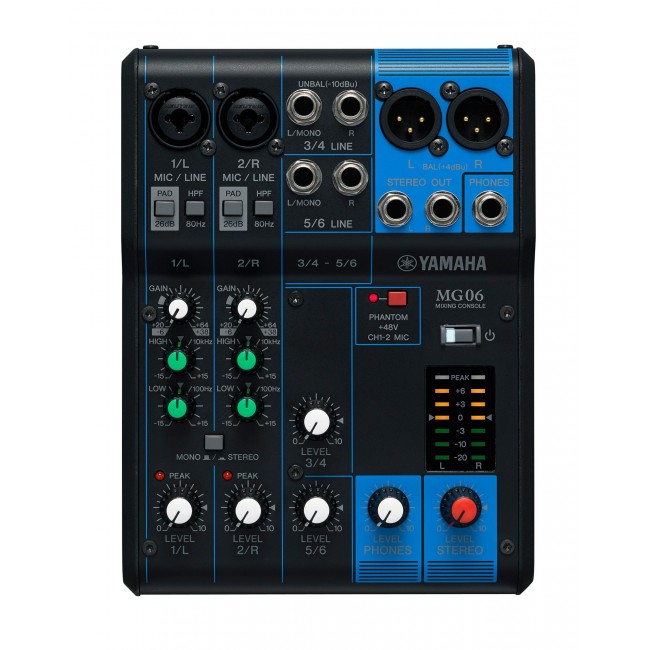

6-Channel Mixing Console: Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) / 1 Stereo Bus
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
- Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
- Net Weight: 0.9 kg (1.98 lbs.)
| MG06 | ||
|---|---|---|
| I/O | Phantom power | +48 V |
| Input Channels | Mono[MIC/LINE] | 2 |
| Mono/Stereo[MIC/LINE] | - | |
| Stereo[LINE] | 2 | |
| Output Channels | STEREO OUT | 2 |
| MONITOR OUT | - | |
| PHONES | 1 | |
| AUX SEND | - | |
| GROUP OUT | - | |
| Bus | Stereo: 1 | |
| Input Channel Function | PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono) | |
| COMP | - | |
| EQ HIGH | (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
| EQ MID | - | |
| EQ LOW | (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] | |
| Total harmonic distortion | 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min | |
| Frequency response | +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | |
| Crosstalk | -88 dB | |
| Power requirements | PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha | |
| Power consumption | 12 W | |
| Dimensions | W | 149 mm (5.9") |
| H | 62 mm (2.4") | |
| D | 202 mm (7.9") | |
| Net weight | 0.9 kg (1.98 lbs.) | |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A | |
| Others | Operating Temperature: 0 to +40˚C | |
