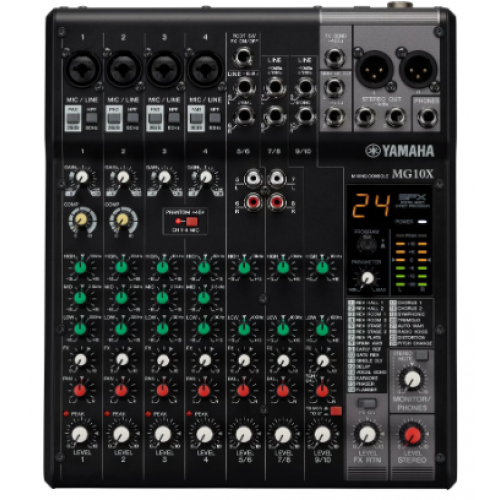

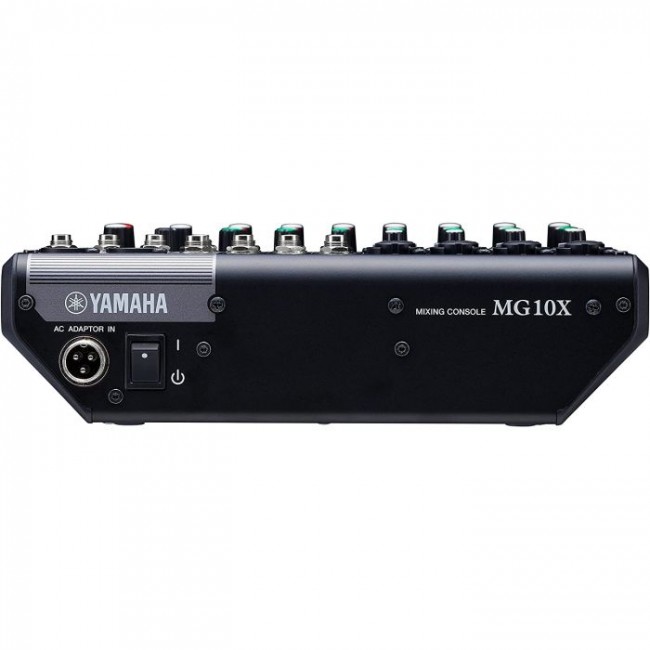

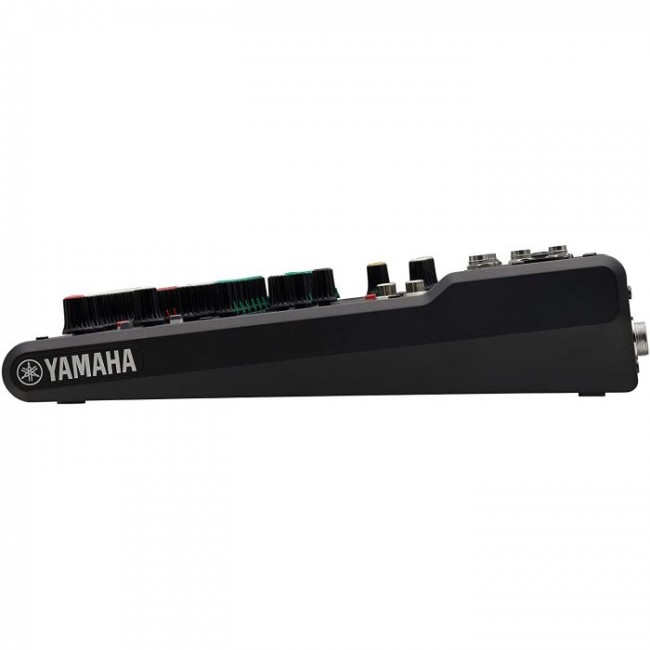

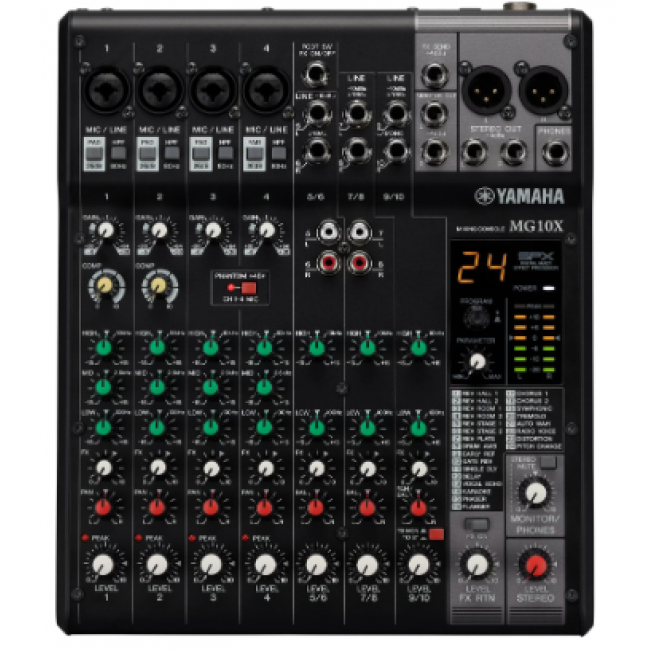

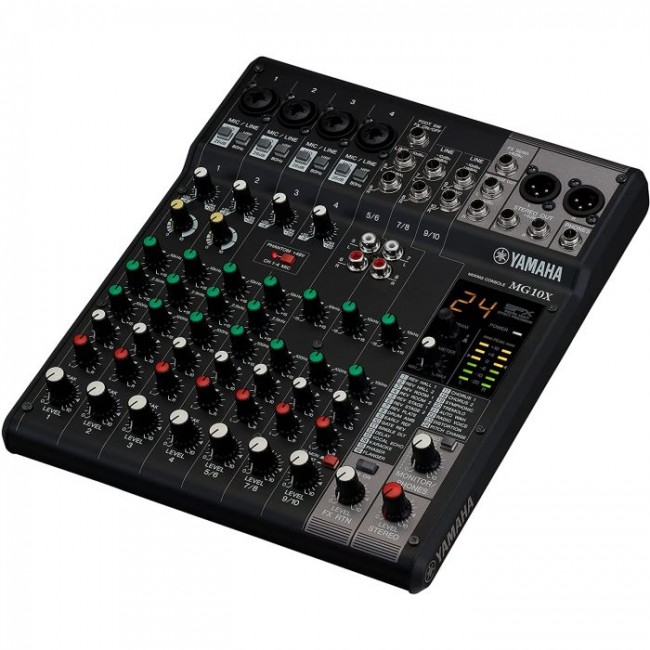

This mixer boasts 10 versatile inputs, including XLR, 1/4-inch, phone/RCA type pin jack inputs for compatibility with a wide range of sources. Two XLR and phone outputs deliver your crystal-clear stereo sound, with the ability for near-endless tweaking via the 24 effect programs and two channels of single-knob compression. Above all, the Yamaha MG10X CV’s color-coded controls, lit on/off switches, and highly durable powder-coated steel chassis make this mixer a rock-solid, intuitive solution for your mixing needs!
- Type: Analog Mixer
- Channels: 10
- Inputs - Mic Preamps: 4 x XLR-1/4" combo
- Phantom Power: 48V, Channels 1-4
- Inputs - Line: 6 x 1/4"
- Inputs - Other: 2 x Dual RCA Stereo
- Outputs - Main: 2 x XLR, 2 x 1/4"
- Outputs - Other: 2 x 1/4" (Monitor)
- Aux Sends: 1 x 1/4" (FX send)
- Busses/Groups: 1 x Stereo
- Headphones: 1 x 1/4" TRS
- Other I/O: 1 x 1/4" (footswitch)
- EQ Bands: 3-Band (High, Mid, Low)
- Effects: SPX with 24 programs
- Power Source: PA-10 (Power Supply Included)
- Height: 2.8"
- Width: 9.6"
- Depth: 11.6"
- Weight: 4.63 lbs.
- Manufacturer Part Number: MG10X CV
