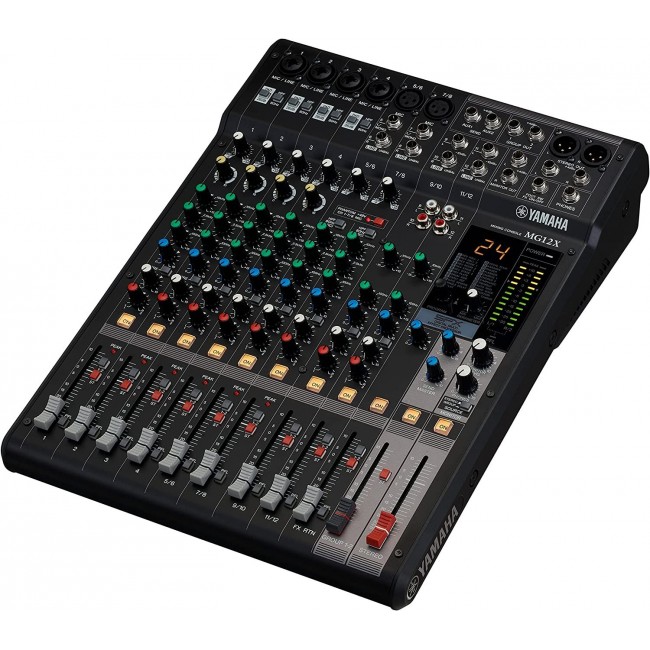

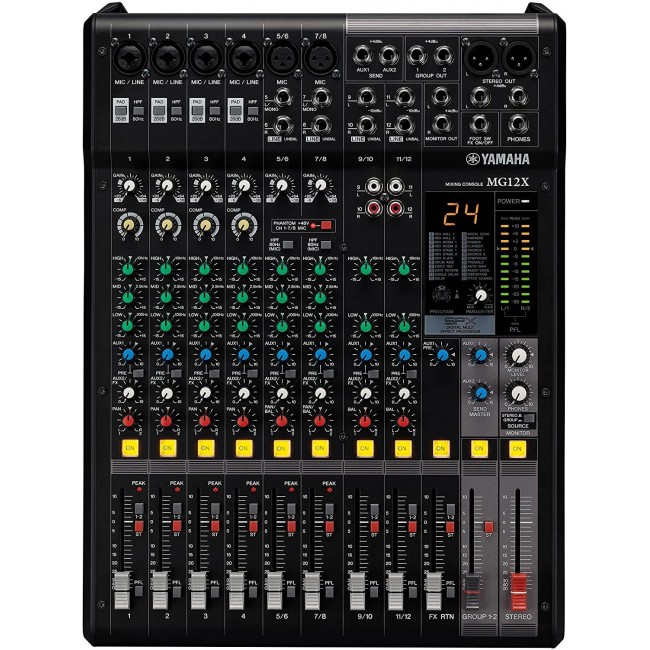

This mixer boasts 12 versatile inputs, including XLR, 1/4-inch, phone/RCA type pin jack inputs for compatibility with a wide range of sources. Two XLR and phone outputs deliver your crystal-clear stereo sound, with the ability for near-endless tweaking via the 24 effect programs and four channels of single-knob compression. Above all, the Yamaha MG12X CV’s color-coded controls, lit on/off switches, and highly durable powder-coated steel chassis make this mixer a rock-solid, intuitive solution for your mixing needs!
- Type: Analog Mixer
- Channels: 12
- Faders: 11 x 60mm
- Inputs - Mic Preamps: 4 x XLR-1/4" combo, 2 x XLR
- Phantom Power: 48V, Channels 1-7/8
- Inputs - Line: 8 x 1/4"
- Inputs - Other: 2 x Dual RCA Stereo
- Outputs - Main: 2 x XLR, 2 x 1/4"
- Outputs - Other: 2 x 1/4" (Monitor)
- Aux Sends: 2 x 1/4"
- Busses/Groups: 1 x Stereo, 2 x Group
- Headphones: 1 x 1/4" TRS
- Other I/O: 1 x 1/4" (footswitch)
- EQ Bands: 3-band (High, Mid, Low)
- Effects: SPX with 24 programs
- Rackmountable: Rack Mount Kit (RK-MG12) sold separately

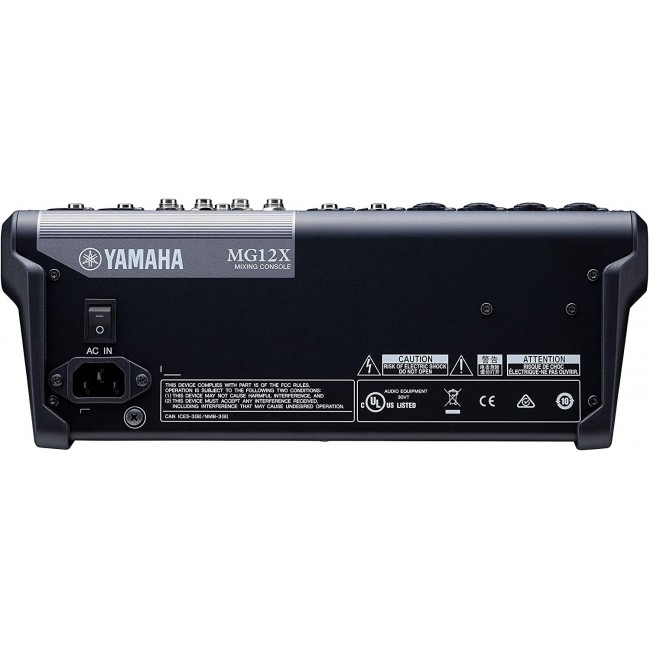

- Power Source: Standard IEC AC cable (included)
- Height: 4.6"
- Width: 12.1"
- Depth: 16.6"
- Weight: 9.3 lbs.
- Manufacturer Part Number: MG12X CV
