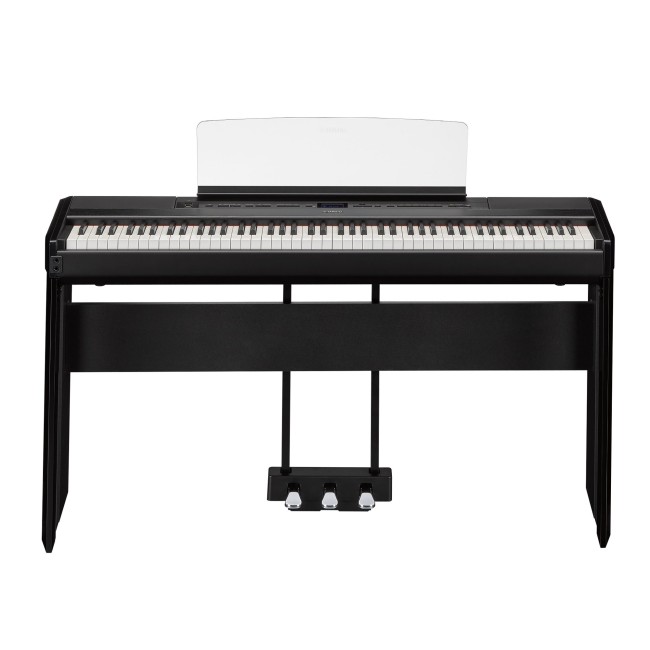

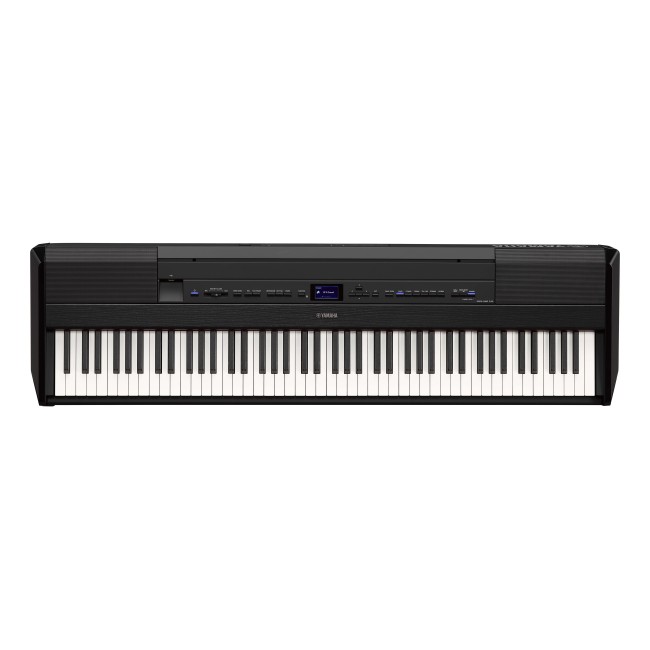

The flagship of Yamaha's P series portable digital pianos, the P-515 is built around the sound of the world-class Yamaha CFX and Bösendorfer Imperial concert grand pianos, which will be instantly recognizable to any seasoned pianist. Your fingers will feel right at home on the P-515's NWX (Natural Wood X) action with Escapement, synthetic ebony and ivory keytops, and keys made from specially dried wood that was specifically selected to give you the same playing feel and response as a grand piano keyboard. With its great sound and advanced features, the Yamaha P-515 is an ideal digital piano for players at all levels.
The top-of-the-line portable digital piano in the P Series, this model features wooden piano keys and offers the capabilities of an authentic piano in a sophisticated design.
| P-515 | ||
|---|---|---|
| Dimensions | Width | 1336mm (52-5/8" ) |
| Height | 145mm (14-13/16" ) | |
| Depth | 376mm (5-11/16") | |
| Weight | Weight | 22.0kg (48 lb, 8 oz) |
| Keyboard | Number of Keys | 88 |
| Type | NWX (Natural Wood X) keyboard: wooden keys (white only), synthetic ebony and ivory keytops, escapement | |
| Touch Sensitivity | Hard2/Hard1/Medium/Soft1/Soft2/Fixed | |
| Display | Type | Full Dots LCD |
| Size | 128 x 64 dots | |
| Panel | Language | English |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial, CFX Binaural Sampling |
| Binaural Sampling | Yes (CFX Grand Voice only) | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Virtual Resonance Modeling (VRM) | Yes | |
| Polyphony | Number of Polyphony (Max.) | 256 |
| Preset | Number of Voices | 40 Voices + 18 Drum/SFX Kits + 480 XG Voices |
| Types | Reverb | 6 |
| Chorus | 3 | |
| Intelligent Acoustic Control (IAC) | Yes | |
| Stereophonic Optimizer | Yes | |
| Functions | Dual/Layers | Yes |
| Split | Yes | |
| Duo | Yes | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Rhythm | 40 | |
| Storage | Internal Memory | Total maximum size approx. 1.4 MB |
| External Drives | USB Flash Memory (optional) | |
| Connectivity | DC IN | 16V |
| Headphones | Standard stereo phone jack (x 2) | |
| Sustain Pedal | Yes | |
| Pedal Unit | Yes | |
| MIDI | In/Out | |
| AUX IN | Stereo mini jack | |
| AUX OUT | [L/L+R][R] | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| Amplifiers | (15 W + 5 W) x 2 | |
| Speakers | (Oval (12 cm x 6 cm) + 2.5 cm (dome)) x 2 | |
| Power Supply | PA-300C or an equivalent recommended by Yamaha | |
| Power Consumption | 15 W | |
| Auto Power Off Function | Yes | |
| Included Accessories | Music Rest | Yes |
| Pedal/Footswitch | FC4A | |
| Recording Time | 80 minutes/Song | |
| Compatible Data Format | Recording | WAV (44.1 kHz, 16 bit, Stereo) |
| Playback | WAV (44.1 kHz, 16 bit, Stereo) | |
| Preset | Number of Preset Songs | 21 Voice Demo Songs + 50 Classics |
| Recording | Number of Songs | 250 |
| Data Capacity | Approx. 500 KB/Song | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
