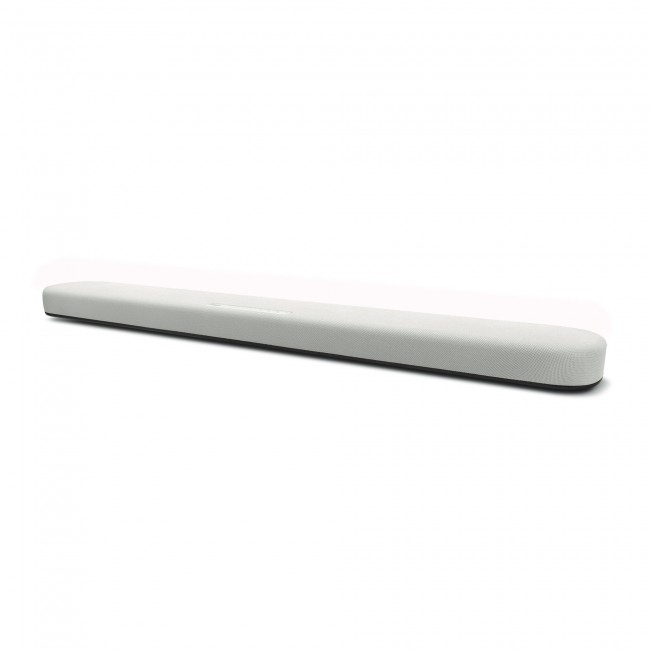

B20A - Sound Bar with virtual 3D surround sound, built in subwoofer and Clear Voice.
- Built in dual subwoofers for deep bass in one slim bar
- Clear Voice for enhanced dialogue quality
- DTS® Virtual:X™ for virtual 3D surround sound
- Bluetooth® connectivity for streaming wireless music
- Simple Setup and Use with HDMI™ and Sound Bar Remote App
| SR-B20A | ||
|---|---|---|
| General | Drivers | Front L/R: 5.5 cm (2-1/8") cone × 2, Tweeter: 2.5 cm (1") dome × 2, Built-in subwoofer: 7.5 cm (3") cone × 2 |
| Output Power | 120 W (Front L/R: 30 W × 2-ch, Built-in subwoofer: 60 W) | |
| Power Consumption | 25 W (Rated) | |
| Standby Power Consumption | 0.2 W (HDMI control off, Bluetooth standby off), 0.5 W (HDMI control on, Bluetooth standby on) | |
| Dimensions (W x H x D) | Installing the unit in front of a TV: 910 × 53 × 131 mm (35-7/8" × 2-1/8" × 5-1/8"), Mounting the unit on a wall with spacers: 910 × 131 × 62 mm (35-7/8" × 5-1/8" × 2-1/2") | |
| Weight | 3.2 kg (7.1 lbs) | |
| Input / Output | HDMI | 1 out (TV ARC) |
| Digital Optical | 2 in | |
| Subwoofer output | Yes | |
| Analog Audio | No | |
| HDMI | 4K Pass-through | No |
| 3D Pass-through | No | |
| ARC | Yes | |
| CEC | Yes | |
| Auto Lip-Sync | No | |
| Sound Technology | Surround Technology | DTS® Virtual:X™ |
| Surround Mode | Stereo, Standard, Movie, Game | |
| Compressed Music Enhancer | Yes (for Bluetooth) | |
| Bass Extension | Yes | |
| Audio Formats | Dolby Digital | Yes |
| Dolby Pro Logic II | Yes | |
| DTS Digital Surround | Yes | |
| File Format | No | |
| Connectivity | Wireless Music Streaming | No |
| Wi-Fi | No | |
| MusicCast Surround | No | |
| AirPlay | No | |
| Bluetooth Version/Profile | Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC | |
| Bluetooth Maximum Communication Range | Approx. 10 m ; 33ft (without obstructions) | |
| Wireless Subwoofer | No | |
| Other Features | App Control | Yes (Sound Bar Remote) |
| Learning Function | No | |
INSTANT IMMERSION
Virtual 3D Surround Technology
Virtual 3D Surround Technology
3D virtual surround creates a complete sound experience.
"DTS Virtual: X" is a virtual 3D surround mode that reproduces height direction in addition to front / back and left / right. As a result, the sense of unity between the video and audio is improved, and in addition to the front-back and left-right spread, you can feel the sound that surrounds you from above, further improving the immersive feeling in the world of movies and music.
SIMPLE TO SET UP, SIMPLE TO USE
Key Hole for Wall Mounting
Key Hole for Wall Mounting
Stylish design with a slim and compact form.
A cleverly designed center unit carefully compliments the screen even when placed in front of your TV. The keyhole wall mounting design allows for a simple and smooth installation appearance.
HDMI ARC
HDMI ARC
Simple one HDMI cable connection supporting audio return channel (ARC) that can transmit TV audio, and be linked with a compatible TV to control power on / off, adjust the volume, switch contents, etc.
Sound Bar Remote App
Sound Bar Remote App
With the newly developed Sound Bar Remote App its even easier to control your entertainment. The App can switch contents, sound modes, clear voice and bass extension functions and simple power on / off commands intuitively and easily from your smartphone / tablet.
- Learn more about Sound Bar Remote App
CRYSTAL CLARITY
Rich Bass Reproduction (Built-in SW x2, Bass Extension)
Rich Bass Reproduction (Built-in SW x2, Bass Extension)
Dual built-in 75 mm (3 ") subwoofer unit combined with the dual bass reflex port, provides a rich and spacious bass range. The 55 mm (2-1 / 8") woofer unit x2, 25 mm (1 ") tweeter x2, further achieve a well-balanced and spacious sound quality combination from low range to high range.
Clear Voice
Clear Voice
Have you ever found it difficult to hear voices or lines from announcements and song vocals?
With Yamaha's clear voice function, you can automatically distinguish human voices such as dialogue and narration from other sounds, increasing the volume of only human voices. Even in movies, dramas, news programs, and music where Back Ground Music and sound effects have been used abundantly, the human voice is clearer and easier to enjoy.
4 Sound Modes
4 Sound Modes
You can enjoy the sound of movies, music, TV programs and games with Yamaha's optimal sound modes. Select from four options (Stereo, Standard, Movie, Game) designed to suit your content. Stereo mode to match stereo playback of music, Standard mode for most TV programs, Movie mode for movies to enhance space expansion, and Game mode to immerse yourself in gameplay content allowing for individual sound action localization to be clear and precise.
