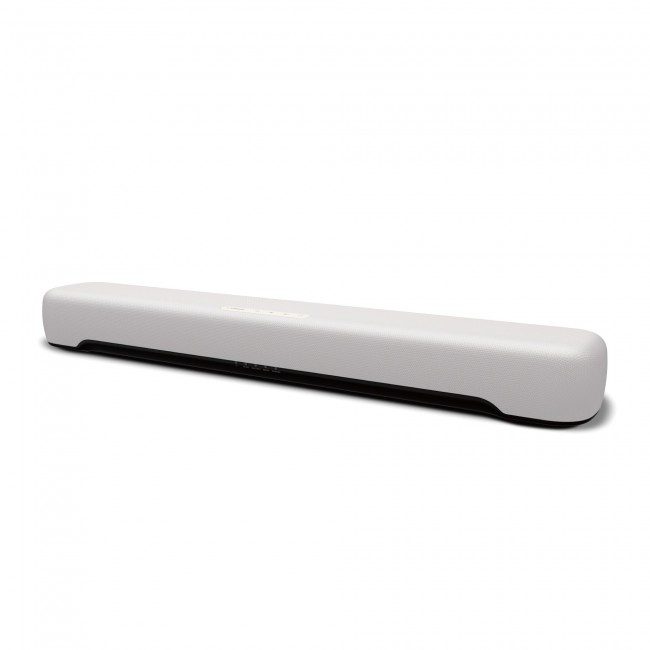

C20A - Compact Sound Bar with built in subwoofer, Bluetooth® and Clear Voice.
- The perfect space saving solution with uncompromised Clear and Immersive sound and built in subwoofer. (W600mm x H64mm x D94mm)
- Clear Voice for enhanced dialogue quality
- Bluetooth® connectivity for streaming wireless music
- Simple Setup and Use with HDMI™, Sound Bar Remote App, or Stereo connection (mini) for gaming
| SR-C20A | ||
|---|---|---|
| General | Drivers | Front L/R: 4.6 cm (1.8") cone × 2, Built-in subwoofer: 7.5 cm (3") cone × 1 |
| Output Power | 100 W (Front L/R: 20 W × 2-ch, Built-in subwoofer: 60 W) | |
| Power Consumption | 13 W (Rated) | |
| Standby Power Consumption | 0.2 W (HDMI control off, Bluetooth standby off), 0.4 W (HDMI control on, Bluetooth standby on) | |
| Dimensions (W x H x D) | Installing the unit in front of a TV: 600 × 64 × 94 mm (23-5/8" × 2-1/2" × 3-3/4"), Mounting the unit on a wall with spacers: 600 × 64 × 102 mm (23-5/8" × 2-1/2" × 4") | |
| Weight | 1.8 kg (3.9 lbs) | |
| Input / Output | HDMI | 1 out (TV ARC) |
| Digital Optical | 2 in | |
| Subwoofer output | No | |
| Analog Audio | 1 in | |
| HDMI | 4K Pass-through | No |
| 3D Pass-through | No | |
| ARC | Yes | |
| CEC | Yes | |
| Auto Lip-Sync | No | |
| Sound Technology | Surround Technology | Dolby Audio |
| Surround Mode | Stereo, Standard, Movie, Game | |
| Compressed Music Enhancer | Yes (for Bluetooth) | |
| Bass Extension | Yes | |
| Audio Formats | Dolby Digital | Yes |
| Dolby Pro Logic II | Yes | |
| DTS Digital Surround | No | |
| File Format | No | |
| Connectivity | Wireless Music Streaming | No |
| Wi-Fi | No | |
| MusicCast Surround | No | |
| AirPlay | No | |
| Bluetooth Version/Profile | Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC | |
| Bluetooth Maximum Communication Range | Approx. 10 m ; 33ft (without obstructions) | |
| Wireless Subwoofer | No | |
| Other Features | App Control | Yes (Sound Bar Remote) |
| Learning Function | No | |
INSTANT IMMERSION
Virtual Surround Technology
Virtual Surround Technology
Be immersed with virtual surround sound technology.
With the unit placed under your screen, a virtual sound field is created to reproduce left, center, right and back sound effects, so you can enjoy a fuller rich presence just like a movie theater.
Rich Bass Reproduction (Built-in SW, Passive Radiator x2, Bass Extension)
Rich Bass Reproduction (Built-in SW, Passive Radiator x2, Bass Extension)
This compact sound bar incorporates a built-in 75mm (3 ") subwoofer unit and dual passive radiator. In addition, the "Bass Extension" enhances any bass signal to ensure a rich and powerful sound.
Clear Voice
Clear Voice
Have you ever found it difficult to hear voices or lines from announcements and song vocals?
With Yamaha's clear voice function, you can automatically distinguish human voices such as dialogue and narration from other sounds, increasing the volume of only human voices. Even in movies, dramas, news programs, and music where Back Ground Music and sound effects have been used abundantly, the human voice is clearer and easier to enjoy.
4 Sound Modes
4 Sound Modes
You can enjoy the sound of movies, music, TV programs and games with Yamaha's optimal sound modes. Select from four options (Stereo, Standard, Movie, Game) designed to suit your content. Stereo mode to match stereo playback of music, Standard mode for most TV programs, Movie mode for movies to enhance space expansion, and Game mode to immerse yourself in gameplay content allowing for individual sound action localization to be clear and precise.
SIMPLE TO SET UP, SIMPLE TO USE
Key Hole for Wall Mounting
Key Hole for Wall Mounting
Stylish design with a slim and compact form.
A cleverly designed center unit carefully compliments the screen even when placed in front of your TV. The keyhole wall mounting design allows for a simple and smooth installation appearance.
HDMI ARC
HDMI ARC
Simple one HDMI cable connection supporting audio return channel (ARC) that can transmit TV audio, and be linked with a compatible TV to control power on / off, adjust the volume, switch contents, etc.
Sound Bar Remote App
Sound Bar Remote App
With the newly developed Sound Bar Remote App its even easier to control your entertainment. The App can switch contents, sound modes, clear voice and bass extension functions and simple power on / off commands intuitively and easily from your smartphone / tablet.
- Learn more about Sound Bar Remote App
GET AHEAD OF THE GAME
Game Sound Mode
Game Sound Mode
Yamaha's GAME Sound Mode further emphasizes the localization of specific individual audible effects, enhancing the player environment for an immersive gaming experience. Connection to PC's at low volume can still achieve significant surround sound action.
FITS RIGHT IN
Compact Size for Desktop Use
Compact Size for Desktop Use
With a width of only 60 cm this compact sound bar can be easily positioned in any situation, whether with a monitor of a desktop PC as well as in front of a flat-screen TV, the modest design allows for great flexibility.
(W600mm x H64mm x D94mm)
