EXPAND YOUR RANGE, EXTEND YOUR REACH
Compact design. Big sound.
Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.
Start the show in seconds
With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.
“A PA in the palm of your hand”
With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.
PRODUCT INFORMATION

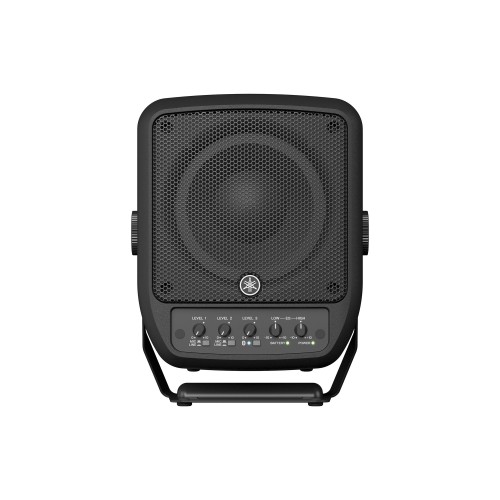

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, and a 3-channel mixer.
- 100 W Class-D amplifier
- 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
- 3-channel mixer (2 monaural mic/line + 1 line)
- Equipped with a 2-band master EQ
- Compatible with Hi-Z input (Channel 2 only)
- Equipped with mix-out
- Carrying handle doubles as an adjustable stand
- Compatible with audio accompaniment over Bluetooth
- Optional carrying bag (BAG-STP100) available for convenient transport
| STAGEPAS 100 | ||
|---|---|---|
| Type | 2-way Bi-amp Powered Speaker with mixer | |
| I/O | Inputs | INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) |
| Outputs | OUTPUT: XLR3-32 (INPUT 1-3 mix) | |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 | |
| Mixing capability | Mixing channels | 3 |
| Input channel functions | Hi-Z: CH2 | |
| Output channel functions | 2 Band EQ | |
| Speaker type | Coaxcial speaker with compression driver | |
| Frequency range (-10dB) | 70 Hz – 20 kHz | |
| Coverage area | H90ﾟ x V90ﾟ | |
| Crossover | 1.8 kHz (FIR-X) | |
| Maximum output level (1m; on axis) | 120 dB SPL *1 | |
| Components | LF | 6.5" Cone, 1.7" voice coil |
| HF | 1" throat compression driver, 1.4" voice coil | |
| Amplifier class | Class-D | |
| Power rating | Dynamic | 100 W (LF: 93 W, HF: 7 W) |
| Cooling | Natural convection (no fan) | |
| Power consumption | 10 W (Idle), 30 W (1/8 power) | |
| Power requirements | 100-240 V 50/60 Hz | |
| Battery | Type | - |
| Capacity | - | |
| Operating Time | - | |
| Charging Time | - | |
| Cabinet material | Plastic (PP) | |
| Handle | Bottom x1 (Rotatable) | |
| Flying and mounting hardware | 1 × 3/8", depth 12 mm (center of handle) | |
| Dimensions (W x H x D) | 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle | |
| Weight | 5.2 kg (11.5 lbs), without AC adaptor | |
| Accessories | Power cord x 1, AC adaptor (PA-500) x 1 | |
| Options | Carrying bag: BAG-STP100 | |
