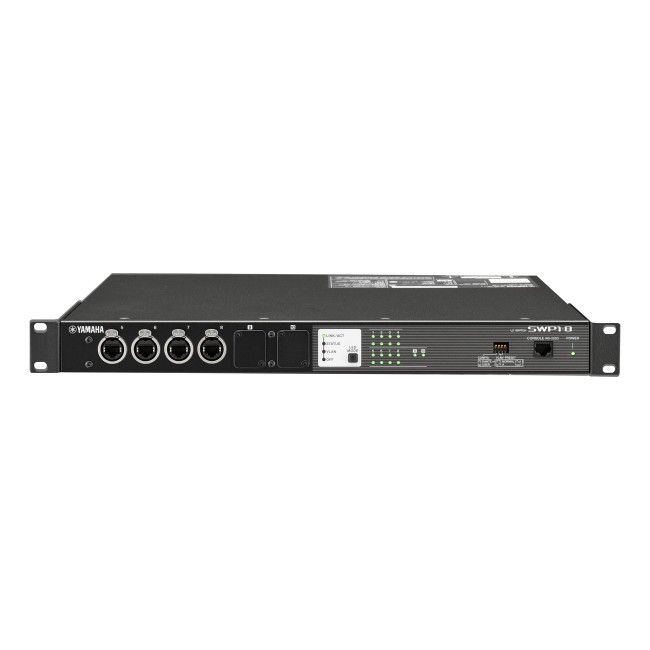

The SWP1 series L2 switch is ideal for Dante network systems. It features eight etherCON ports and option slots for two more ports as needed.
- etherCON Connectors: 4 front / 4 rear
- Optional optical module slot: 2 front
- Power consumption: 11W
- Dimensions (WxHxD): 480 x 44 x 362mm (18.9" x 1.7" x 14.2")
- Net Weight: 4.2 kg (9.3 lbs)
| SWP1-8 | ||
|---|---|---|
| Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector) | 8 | |
| Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T, RJ-45 connector) | - | |
| Number of SFP ports (1000BASE-SX, opticalCON connector) | 2 (optical modules are not installed as standard) | |
| Console port | 1 (RJ-45) | |
| Automatic negotiation | Available | |
| Auto MDI/MDI-X | Available | |
| Switching capacity | 20 Gbit/s | |
| Throughput | 15 Mpps | |
| Maximum number of MAC addresses | 16,384 | |
| Frame buffer | 1024 kB | |
| VLAN | Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN | |
| Maximum number of VLANs | 256 (VLAN ID 1-4,094) *VLAN ID 1 is the default VLAN ID. | |
| IP multicast | IGMP Snooping (v1/v2/v3) | |
| QoS | 8 egress queues, Policy-based QoS, Remarking (CoS, ToS, DSCP), Scheduling (SP, WRR) | |
| Flow control | IEEE802.3x (Full-duplex), back pressure (Half-duplex) | |
| Support functions | Storm control, HOL blocking prevention, Loop detection, ACL, SNMP agents, Link aggregation (IEEE 802.3ad LACP, Static), Spanning tree (STP*, RSTP*, MSTP), Port mirroring, Port shutdown, Link speed down shift, Packet counter, Power saving mode (IEEE802.3az EEE; Disabled in DANTE mode), DHCP client, Logging, Firmware download via TFTP/HTTP, Config file download via TFTP *STP and RSTP are supported via downward compatibility of MSTP. | |
| DIP switches | CONFIG, VLAN PRESET | |
| Indicators | Front: POWER, LED MODE×4, PORT×8×2*, SFP×2 *The LED MODE button allows the PORT lamps to be switched between indicating LINK/ACT-SPEED, STATUS, or VLAN. | |
| Operating temperature | 0 to 40°C | |
| Storage temperature | -20 to 60°C | |
| Power supply (AC IN inlet) | AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type | |
| Power supply (EXT DC INPUT inlet) | External power supply requirements: 24VDC±2V, 1A, XLR-4-32 type Connector | |
| Maximum power consumption | 11 W, 0.21 A | |
| Heat dissipation | 9.5 kcal/h | |
| Chassis | Metal case, no fan | |
| Hazardous substances management | RoHS compliant | |
| Dimensions | W | 480mm |
| H | 44mm | |
| D | 362mm | |
| Weight | 4.2 kg | |
| Accessories | Power cord, Owner's manual | |
| Options | MMF-SWP1 (Optical expansion unit), PA-700 (AC adaptor) | |
