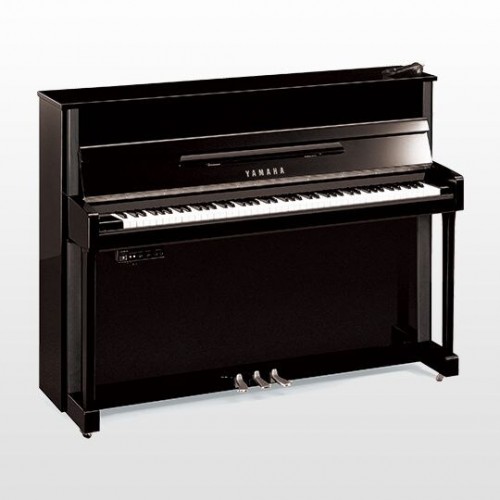

Featuring superior sound through added depth and traditional cabinetry, the JX113T looks and sounds magnificent in any living environment. Silent functionality has been added to this JX113T. This is an SG2 type type Silent piano™ featuring a CFIIIS sound source.
Country Of origin: Indonesia
| JX113T SC2 | ||
|---|---|---|
| Dimensions | Width | 150 cm (59") |
| Height | 113 cm (44 1/2") | |
| Depth | 54 cm (21 1/4") | |
| Weight | Weight | 220 kg (495 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | JU/JX Series Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | Single caster |
| Lid | Prop Safety Stop | - |
| Key Cover | Lid/Fallboard Locks | - |
| Soft-Close Fallboard | - | |
| Key Sensors | Non-contact continuous detection optical sensor | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (CFX Grand Voice only) | |
| VRM | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 10 |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (Piano Voices other than CFX Grand) | |
| Preset | Number of Preset Songs | 10 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 1 |
| Data Capacity | approx. 550 KB | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -6 – 0 – +6 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Storage | Internal Memory | approx. 550 KB |
| External Drives | USB flash drive | |
| Connectivity | DC IN | 16 V |
| Headphones | Stereo mini jack (×2) | |
| MIDI | - | |
| AUX IN | Stereo mini jack | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-300C (or an equivalent recommended by Yamaha) | |
| Power Consumption | 11 W (When using PA-300C AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*, headphones, headphone hanger, attachment screws for headphone hanger, Owner’s Manual *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01), wireless MIDI adaptor (UD-BT01) *May not be available depending on your area. | |
Unique Yamaha technology retains the all-important touch of the grand piano
Yamaha Silent Piano™ features a range of unique technologies that allow them to offer a touch that is astonishingly close to that of an acoustic grand piano even when in "Silent" mode.
- Key sensors
Under each of the 88 keys is a Yamaha-unique continuous-detection grey-scale shutter key sensor. These sensors detect the movement of the keys continually, allowing natural musical expression even when the piano is in "Silent" mode. Since they do not come into contact with the keys, these sensors do not affect the feel of the keyboard in any way.
- Quick escape system (Grand Pianos only)
Silent Piano™ features a quick escape system that allows the sound muting mechanism to be fitted to a grand piano without sacrificing any of the playability or musical expression demanded of such instruments in an acoustic performance. This system allows optimal separation to be obtained between the hammers and strings by adjusting the distance between the hammers and strings, ensuring that the feel of the keyboard stays in the best possible condition whether playing acoustically or with the sound muted.
Rich resonance and subtle accurate reproduction
- CFIIIS Sampling
With stereo samplings from the world-renowned CFIIIS concert grand. Yamaha’s SG2 type Silent piano™ delivers rich resonance and an element of luxury.
- Maximum simultaneous polyphony of 64 notes
Polyphony is a vital feature that defines and supports the quality of the sounds that you are using. The maximum simultaneous polyphony on the SG2 type is 64 notes.
- 30MB Wave memory
Wave memory size is key, as it defines the storage level for the sampled sound data. 30MB wave memory allows Yamaha to include longer samples, many velocity layers, key sampling for each individual key and sustain sampling.
Affordable price since functions are limited to the most important ones
- 10 tonal colors
10 voices, including harpsichord, pipe organ and strings, provide a wide range of musical expression.
- Built-in recording and play back functions
The SG2 type Silent piano™ can record one song in the internal memory. Additionally, connecting commercially available USB memory to the unit allows you save recording data, and play back songs.
- Simple control unit
The SG2 type simple control unit allows you use easily to control the basic functions of recording and playing back songs.
Fundamental connection terminals
- Equipped with AUX and MIDI terminals
- AUX and MIDI terminals allow the sound to be output to a variety of external devices (e.g. stereo components, IC recorders, speakers with built-in amplifiers, stereo systems).
- Connecting SG2 type pianos to external devices such as sound source modules and music players (CD players etc.) via AUX IN terminals allows players to listen to the sound from these external devices on the headphones while they play the piano.
- Connecting MIDI devices such as synthesizers to SG2 type pianos via MIDI OUTPUT terminals allows players to transmit performance information to external devices for playback.
- Connecting music sequencers to SG2 type pianos via MIDI IN terminals allows the players to receive and play back the performance information provided by the sequencers using the sound source of SG2 type pianos.
