2.5" full-range low-profile ceiling speaker
- 2.5” full-range speaker unit
- Engineered for optimum BGM reproduction
- Low-profile design facilitates installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 1.7 kg (3.7 lbs), Ø225 x D89 mm (Ø8-7/8" x D3-1/2")
- Optional pendant-mount kit (PK-C4) and tile rail kit (AB-C2) are available
| VXC2FB | ||
|---|---|---|
| Speaker type | Full range, Bass reflex | |
| Frequency range (-10dB) | 67 Hz - 20 kHz (Half-space 2π) | |
| Nominal coverage | 160゜conical (Half-space 2π) | |
| Components | LF-HF | 2.5" Full range unit |
| Power rating | NOISE | 15 W |
| PGM | 30 W | |
| PEAK | 60 W | |
| Nominal impedance | 8 Ω | |
| Transformer taps | 100V | 15 W, 7.5 W, 3.8 W, 1.9 W |
| 70V | 15 W, 7.5 W, 3.8 W, 1.9 W, 1 W | |
| SPL | Sensitivity (1W; 1m on axis) | 86 dB SPL (Half-space 2π) |
| Peak (Calculated) | 104 dB SPL (Calculated, 1m) | |

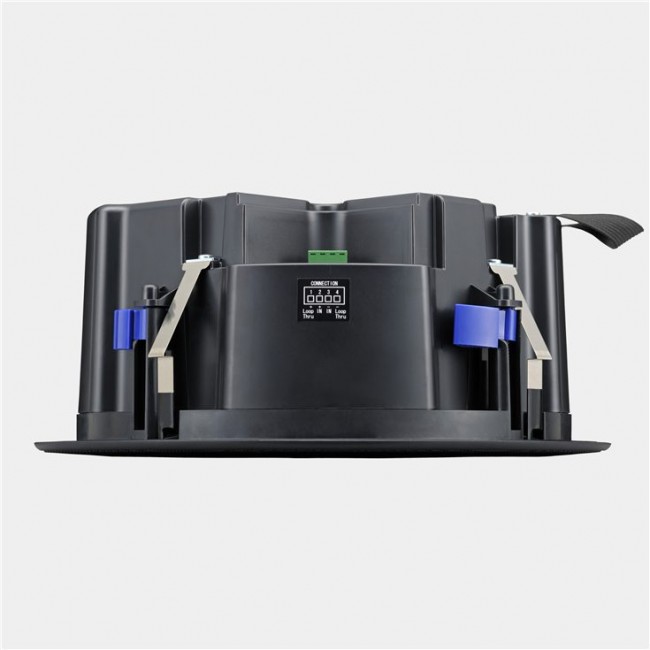

| I/O connectors | Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-) | |
| Protection circuit | Load protection | Full-range power limiting to protect network and transducers |
| Finish | VXC2FB: Black (approx. Munsell N3), VXC2FW: White (approx. Munsell N9.3) | |
| Dimensions | Diameter | 225 mm (8-7/8") |
| D | 89 mm (3-1/2") | |
| Net weight | 1.7 kg (3.7 lbs) | |
| Cutout size | Ø186 mm (Ø7-5/16") | |
| Required ceiling board thickness | 5 mm – 37 mm | |
| Accessories | Cutout Template | |
| Packaging | Single package | |
| Certificate | UL1480, UL2043, NFPA70, CE, EAC, RoHS | |
| EN54-24 compliance | - | |
| Others | Conduit tube: Ø15.4 mm - Ø21.3 mm | |
| Options | PK-C4B / PK-C4W: Pendant-mount kit, AB-C2: C-ring + Tile Rail kit | |
Delivers the Highest Quality Background Music
Delivers the Highest Quality Background Music
Yamaha’s deep understanding of music comes together with cutting edge technology in newly designed speaker units and resin enclosures that allow an extraordinary degree of acoustic design freedom, resulting in refined, natural music reproduction at any volume level without the midrange distortion that often plagues speakers of this type. The VXC-F's speaker unit size and back box volume have also been painstakingly matched to achieve well-balanced reproduction from low to high frequencies even at low output levels.
Recommended Applications
Restarurant, cafe, bar, retail stores, spa, museum, hotel lobby, ball room, etc.
Smart Design for Safer, Faster Installation
Smart Design for Safer, Faster Installation
The VXC-F ceiling speakers feature low profile back boxes, reduced weight, and mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connection, the need for extra stock is minimized and systems can be designed to ideally meet the requirements of any application.

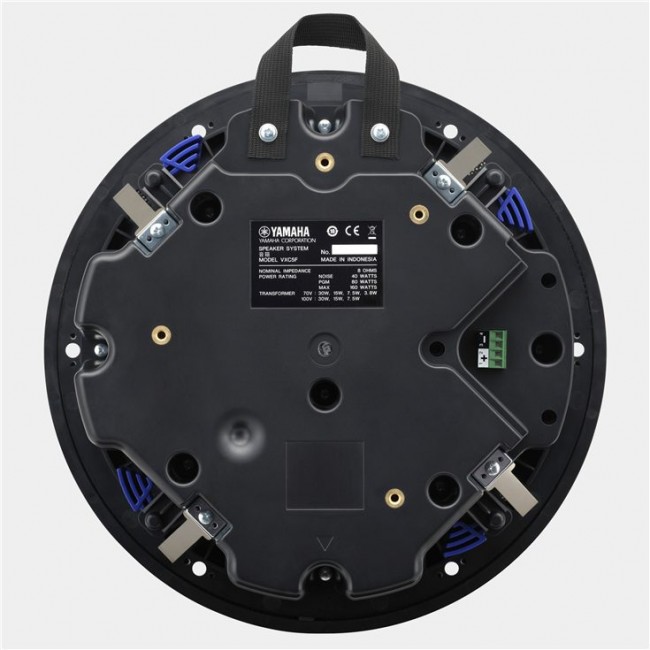

Carrying Band
Anti-Drop Tab
Hi-Z or Lo-Z
Hi-Z or Lo-Z
Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
Low Profile
Low Profile
Reduced physical depth allows installation in ceilings where space is limited.
Lightweight
Lightweight
Reduced weight increases installation flexibility while lessening the burden on installation personnel.

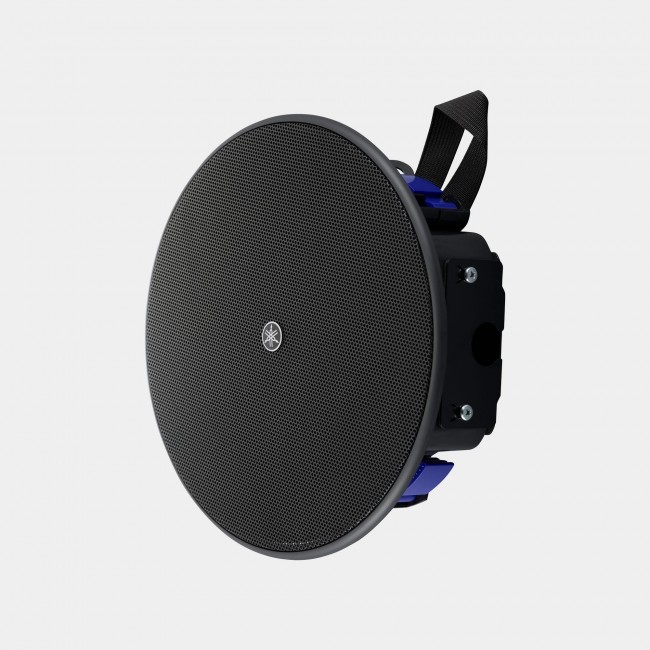

Portable
Portable
A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.
Secure
Secure
An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.
* Not available with the VXC2F
Fast
Fast
Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.
Streamlined
Streamlined
The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.

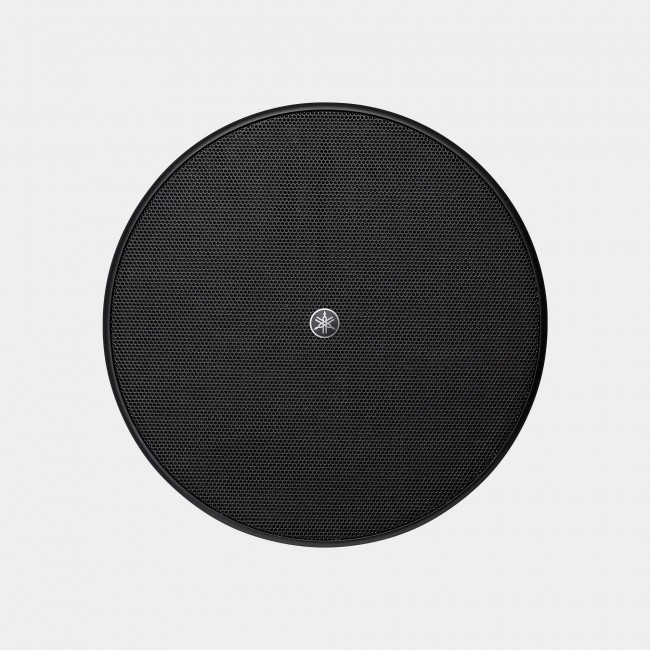

Paintable
Paintable
The supplied grilles can be painted any color to match interior decor.
EN54-24 Certified Versions with Uncompromised Performance
Yamaha also offers "VA versions" that meet European EN54-24 voice alarm system requirements. These models have been carefully tuned to retain the natural musical instrument and voice reproduction quality that is a feature in all VXC-F speakers, delivering refined BGM during normal operation while providing exceptional clarity for emergency broadcasts. The ability to support both music playback and emergency broadcasts with a single speaker type contributes to reduced system complexity and cost.
*Available models: VXC5F-VA/VXC5F-VAW/VXC3F-VA/VXC3F-VAW
*VA versions are not available in some regions.
