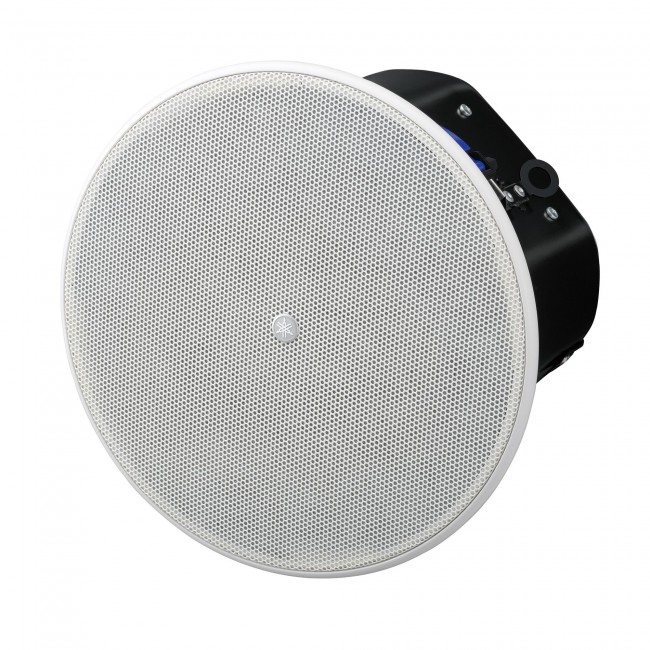

Yamaha designed the new VXC and VXS speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.
6.5" cone woofer with a 0.75" soft dome tweeter.
| VXC6W | ||
|---|---|---|
| Speaker type | 2-way, Acoustic suspension | |
| Frequency range (-10dB) | 56Hz - 20kHz (Half-space:2π) | |
| Nominal coverage | 110° conical (Half-space:2π) | |
| Components | LF | 6.5" Cone |
| HF | 0.75" Soft dome | |
| LF-HF | - | |
| Power rating | NOISE | 75W |
| PGM | 150W | |
| PEAK | 300W | |
| Nominal impedance | 8Ω | |
| Transformer taps | 100V | 60W (170Ω), 30W (330Ω), 15W (670Ω) |
| 70V | 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) | |
| SPL | Sensitivity (1W; 1m on axis) | 86dB SPL (Half-space:2π) |
| Peak (Calculated) | 111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) | |
| I/O connectors | 1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -) | |
| Finish | VXC6: Black / VXC6W: White | |
| Dimensions | Diameter | 286mm (11.3") |
| D | 205mm (8.1") | |
| Net weight | 4.4kg (9.7lbs) | |
| Cutout size | Ø247 mm (Ø9 3/4") | |
| Required ceiling board thickness | 5 mm – 35 mm | |
| Accessories | O-ring, Tile Rail, Cutout Template | |
| Packaging | Packaged in pairs | |
| Certificate | UL1480, UL2043, NFPA70, CE, EAC, RoHS | |
| Options | - | |
Ceiling speakers for any application
The VXC Series offers three different woofer sizes, allowing you to choose the speaker that is most suitable for your venue. Each model has an internal transformer that allows both high and low-impedance drive with just a single speaker, simply by switching the tap on the baffle. Since a single speaker can be used for both operations, inventory control is simplified, and you can easily adapt your system to any changes.
Safe, seamless installation
Series speakers' Anti-Drop tab allows them to be mounted temporarily in the ceiling, freeing your hands for better safety and ease of installation. An attached, flexible carrying band also makes the speakers very portable, allowing you to carry multiple speakers at once safely. Additionally, VXC Series speakers also come complete with O-rings and tile rails for a safer, smoother installation.
Pursuing the best sound for installation
We developed the VXC and VXS Series speakers to address a demand in the installation market for speakers capable of providing superb music reproduction as well as crystal clear announcements for public address applications. Both series feature newly customized transducers with large, powerful magnetic circuits that increase driving and braking force substantially, as well as dedicated tweeter diaphragms and speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction. Cabinets are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected plastic with just the right tensile strength, and designed with optimized bass-reflex tuning to offer a firm, tight low-end. From the networking components and the materials used for wiring and soldering, right down to the optimal placement of acoustic absorption material, a great deal of attention has been paid to even the smallest details of the series' design.
Speaker Design
Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction—effectively enhancing sound quality and speaker performance without disturbing the interior décor of the installation. This concept is evident in the hexagonal design featured on the grille that actually improves sound clarity by raising the aperture ratio. The innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.
Paintable speakers for your unique room design
VXC series comes with paintable speaker grilles. Not only filling your room with premium sound, VXC series enhances the design of interior by painting its grille in any color you like such as light color, deep color, or the best matching color to your decors.
EN54 compatible version with uncompromised performance
We also offers "VA" versions that add EN54-24 voice alarm system standard compliance while retaining the outstanding sonic quality and ease of installation provided by the VXC series speakers; therefore a single speaker can optimally handle both music reproduction and emergency broadcast functions. The VA versions employ flame-retardant materials for the cabinet and baffle, ceramics for the speaker terminal support, and clamping covers on the rear panels to meet EN54-24 standard heat and moisture resistance requirements. 3 models and 6 variations of VXC-VA version are available.
