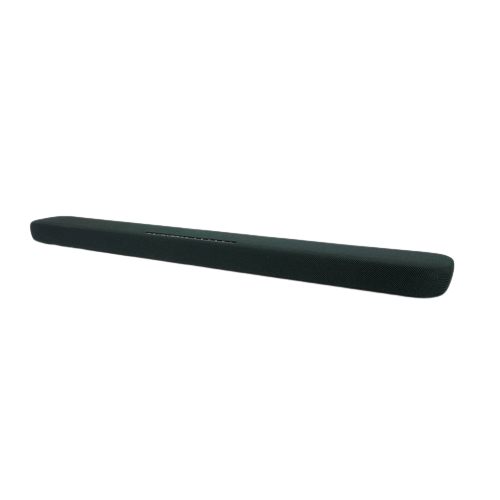

Alexa built-in Sound Bar with virtual 3D surround sound, built-in subwoofer and Clear Voice.
- Built-in Alexa voice control for easy control of your sound bar, smart home devices, music and more
- Dual subwoofers built in for deep bass from an all-in-one sound bar
- Clear Voice for enhanced dialogue clarity
- DTS® Virtual:X™ virtual 3D surround sound
- Bluetooth® streaming for your music and podcasts
| YAS-109 | ||
|---|---|---|
| General | Drivers | Front L/R: 5.5 cm (2-1/8“) cone × 2, Tweeter: 2.5 cm (1”) dome × 2, Built-in subwoofer: 7.5 cm (3") cone × 2 |
| Output Power | 120 W (Front L/R: 30 W × 2-ch, Built-in subwoofer: 60 W) | |
| Power Consumption | 30 W (Rated), 4.3 W (Voice Control Ready) | |
| Standby Power Consumption | 0.2 W (HDMI control off, network standby off), 1.7 / 1.9 / 1.7 W (HDMI control off, network standby on [Wired / Wi-Fi / Bluetooth®]), 0.6 W (HDMI control on, network standby off), 2.2 W (HDMI control on, network standby on) | |
| Dimensions (W x H x D) | Installing the unit in front of a TV: 890 x 53 x 131 mm (35” x 2-1/8” x 5-1/8”), Mounting the unit on a wall with spacers: 890 x 131 x 62 mm (35” x 5-1/8” x 2-1/2”) | |
| Weight | 3.4 kg; 7.5 | |
| Input / Output | HDMI | 1 in / 1 out (TV ARC) |
| Digital Optical | 1 in | |
| Subwoofer output | Yes | |
| Analog Audio | Yes | |
| HDMI | 4K Pass-through | Yes (50 / 60 Hz YCbCr=4:4:4, HDR10, HLG and HDCP2.3) |
| 3D Pass-through | Yes | |
| ARC | Yes | |
| CEC | Yes | |
| Auto Lip-Sync | Yes | |
| Sound Technology | Surround Technology | DTS® Virtual:X™ |
| Surround Mode | Music, TV program, Movie, Sports, Game | |
| Compressed Music Enhancer | Yes (for Bluetooth) | |
| Bass Extension | Yes | |
| Audio Formats | Dolby Digital | Yes |
| Dolby Pro Logic II | Yes | |
| DTS Digital Surround | Yes | |
| File Format | WAV (PCM format only) / FLAC: up to 192 kHz, ALAC: up to 96 kHz, MP3 / WMA / MPEG-4 AAC: up to 48 kHz | |
| Connectivity | Wireless Music Streaming | Yes |
| Wi-Fi | Yes (2.4 GHz) | |
| MusicCast Surround | No | |
| AirPlay | No | |
| Bluetooth Version/Profile | Version: Ver 4.2 / Profiles: A2DP, AVRCP / Codecs: SBC, AAC | |
| Bluetooth Maximum Communication Range | Approx. 10 m ; 33ft (without obstructions) | |
| Wireless Subwoofer | No | |
| Other Features | App Control | Yes (Sound Bar Controller) |
| Learning Function | No | |
